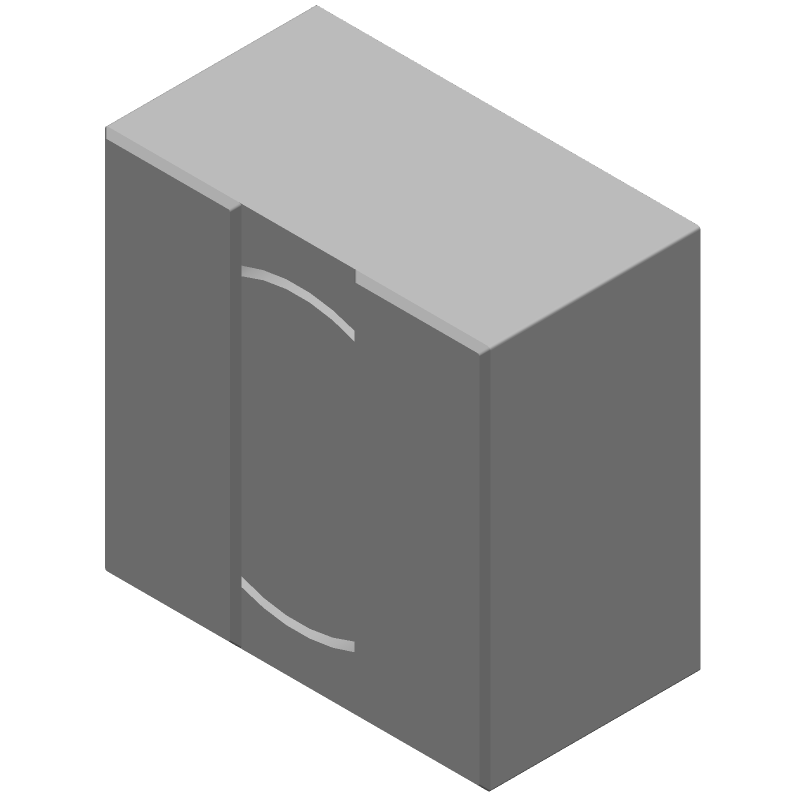

General purpose shielded inductor with 15µH inductance and 30% tolerance. Features a ferrite core, 1.6A current rating, and 57mΩ DC resistance. Operates from -40°C to 125°C and has a self-resonant frequency of 18MHz. Packaged in a 6038 SMD case for surface mounting.
Frequency18MHz
Package6038
Resistance57MR
Current Rating1.6A
Quick Jump:
Technical Specifications
Bourns SRR6038-150Y technical specifications.
General
| Package/Case | 6038 |
| Core Material | Ferrite |
| Current Rating | 1.6A |
| DC Current | 1.6A |
| DC Resistance (DCR) | 57mR |
| Depth | 7mm |
| Frequency | 18MHz |
| Height | 3.8mm |
| Height - Seated (Max) | 0.157inch |
| Inductance | 15uH |
| Inductance Tolerance | 30% |
| Length | 6.8mm |
| Material | Steel |
| Max DC Current | 1.6A |
| Max Operating Temperature | 125°C |
| Military Standard | Not |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Q Factor | 8.6 |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 57MR |
| RMS Current (Irms) | 1.6A |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 100kHz |
| Saturation Current | 1.9A |
| Self Resonant Frequency | 18MHz |
| Series | SRR6038 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 6.8mm |
Compliance
| RoHS | Compliant |
