Surface mount shielded wirewound power inductor with 1mH inductance and 20% tolerance. Features a ferrite core, 150mA current rating, and 5.4 Ohm DC resistance. Operates across a -40°C to 125°C temperature range with a 120 Q factor at 1kHz. Self-resonant frequency is 3.1MHz. Packaged in tape and reel.
Frequency3.1MHz
PackageNonstandard
Resistance5.4R
Current Rating150mA
Quick Jump:
Technical Specifications
Bourns SRR7032-102M technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current Rating | 150mA |
| DC Resistance (DCR) | 5.4R |
| Depth | 7mm |
| Frequency | 3.1MHz |
| Height | 3.2mm |
| Height - Seated (Max) | 0.134inch |
| Inductance | 1mH |
| Inductance Tolerance | 20% |
| Length | 7mm |
| Material | Steel |
| Max DC Current | 150mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1500 |
| Packaging | Tape and Reel |
| Q Factor | 120 |
| Reach SVHC Compliant | No |
| Resistance | 5.4R |
| RMS Current (Irms) | 150mA |
| RoHS Compliant | Yes |
| Sample Rate (Hz) | 1kHz |
| Saturation Current | 140mA |
| Self Resonant Frequency | 3.1MHz |
| Series | SRR7032 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 20% |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRR7032-102M Datasheet
Download the complete datasheet for Bourns SRR7032-102M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

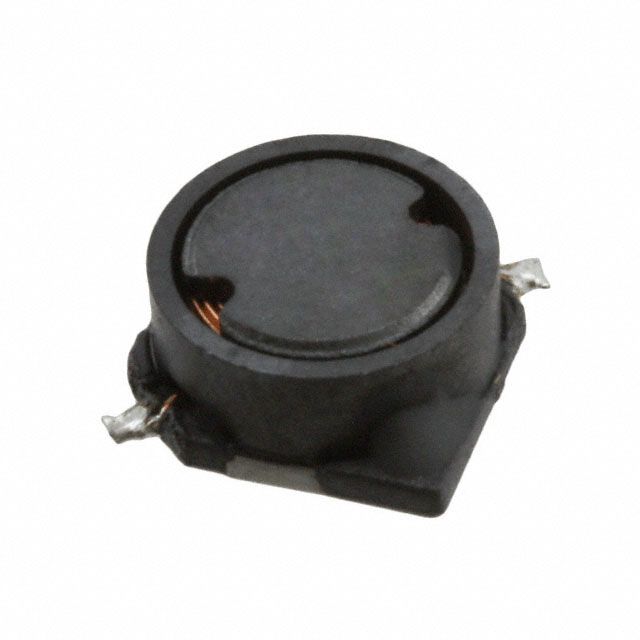

Product Images
