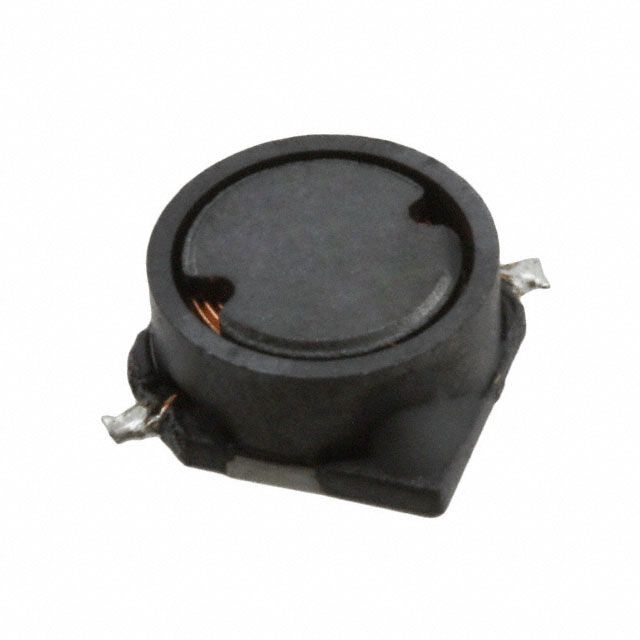

Surface mount shielded wirewound power inductor with 220µH inductance and 20% tolerance. Features a ferrite core, 300mA current rating, and 1.3Ω DC resistance. Operates from -40°C to 125°C with a Q factor of 47 at 1kHz and a self-resonant frequency of 7.5MHz. Packaged in tape and reel for automated assembly.
Frequency7.5MHz
PackageNonstandard
Resistance1.3R
Current Rating300mA
Quick Jump:
Technical Specifications
Bourns SRR7032-221M technical specifications.
General
Package/Case
Nonstandard
Core Material
Ferrite
Current Rating
300mA
DC Current
300mA
DC Resistance (DCR)
1.3R
Depth
7.3mm
Frequency
7.5MHz
Height
3.2mm
Height - Seated (Max)
0.134inch
Inductance
220uH
Inductance Tolerance
20%
Length
7mm
Material
Steel
Max DC Current
300mA
Max Operating Temperature
125°C
Military Standard
Not
Min Operating Temperature
-40°C
Mount
Surface Mount
Package Quantity
1500
Packaging
Tape and Reel
Q Factor
47
Radiation Hardening
No
Reach SVHC Compliant
No
Resistance
1.3R
RMS Current (Irms)
300mA
RoHS Compliant
Yes
Sample Rate (Hz)
1kHz
Saturation Current
320mA
Self Resonant Frequency
7.5MHz
Series
SRR7032
Shielding
Shielded
Termination
SMD/SMT
Test Frequency
100kHz
Tolerance
20%
Width
7mm
Compliance
RoHS
Compliant
Datasheet
Bourns SRR7032-221M Datasheet
Download the complete datasheet for Bourns SRR7032-221M to view detailed technical specifications.
