Shielded, ferrite-core general purpose inductor with 4.7µH inductance and 30% tolerance. Features a 5.5A maximum DC current rating, 4.75A saturation current, and 1.1A current. DC resistance is 9.5mΩ. Operates from -40°C to 125°C. Surface mount package with dimensions of 10mm width, 4.8mm height, and 0.394inch length.
PackageNonstandard
Current1.1A
Current Rating5.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns SRU1048-4R7Y technical specifications.
General
| Package/Case | Nonstandard |
| Core Material | Ferrite |
| Current | 1.1A |
| Current Rating | 5.5A |
| DC Resistance (DCR) | 9.5mR |
| Height | 4.8mm |
| Height - Seated (Max) | 0.201inch |
| Inductance | 4.7uH |
| Length | 0.394inch |
| Max DC Current | 5.5A |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 600 |
| Packaging | Tape and Reel |
| Q Factor | 12 |
| RoHS Compliant | Yes |
| Saturation Current | 4.75A |
| Self Resonant Frequency | 30MHz |
| Series | SRU1048 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 100kHz |
| Tolerance | 30% |
| Width | 10mm |
Compliance
| RoHS | Compliant |
Datasheet
Bourns SRU1048-4R7Y Datasheet
Download the complete datasheet for Bourns SRU1048-4R7Y to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

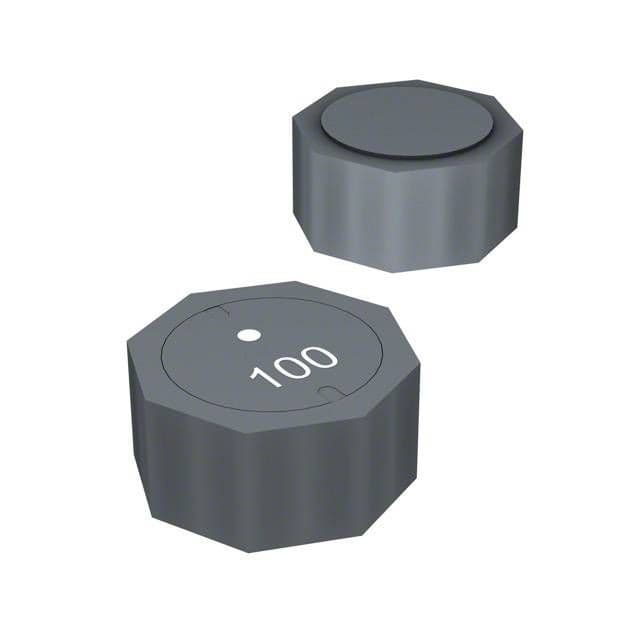

Product Images
