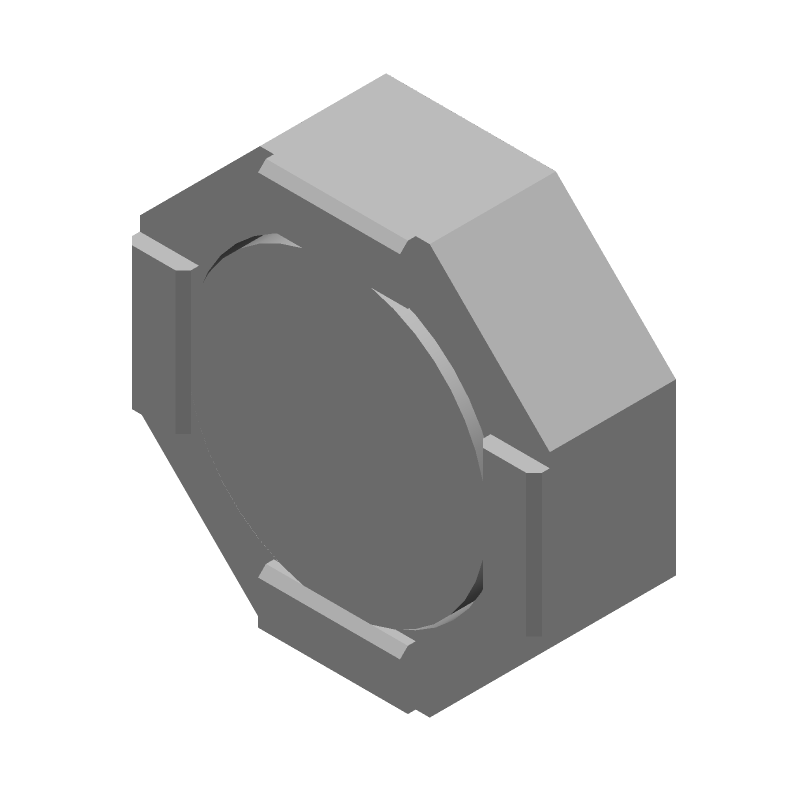

Surface mount fixed inductor featuring 100µH inductance with a 30% tolerance. This shielded, wirewound power inductor utilizes a ferrite core and offers a 320mA RMS current rating. Operating within a -40°C to 125°C temperature range, it exhibits a DC resistance of 620mΩ and a Q factor of 15 at 796kHz. The 5018 package measures 5.2mm x 5.2mm x 1.8mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns SRU5018-101Y datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | 5018 |
| Core Material | Ferrite |
| Current | 660mA |
| Current Rating | 320mA |
| DC Resistance (DCR) | 620mR |
| Depth | 5.2mm |
| Height | 1.8mm |
| Height - Seated (Max) | 0.079inch |
| Inductance | 100uH |
| Inductance Tolerance | 30% |
| Length | 5.2mm |
| Max DC Current | 320mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Q Factor | 15 |
| Reach SVHC Compliant | No |
| RMS Current (Irms) | 320mA |
| RoHS Compliant | Yes |
| Saturation Current | 310mA |
| Self Resonant Frequency | 15MHz |
| Series | SRU5018 |
| Shielding | Shielded |
| Termination | SMD/SMT |
| Test Frequency | 796kHz |
| Tolerance | 30% |
| Width | 5.2mm |
| RoHS | Compliant |
