Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface mount package. Features a 250V clamping voltage, 100mA peak pulse current, and 1µs response time for robust ESD protection. Operates across a -40°C to 125°C temperature range with a 100V working voltage and 20V reverse standoff voltage. Supplied in tape and reel packaging.
PackageDFN
Voltage Rating250V
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-CA025-050-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
250V
Current Rating
50mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
100mA
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
TBU®
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Weight
0.076oz
Width
0.157inch
Working Voltage
100V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-CA025-050-WH Datasheet
Download the complete datasheet for Bourns TBU-CA025-050-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

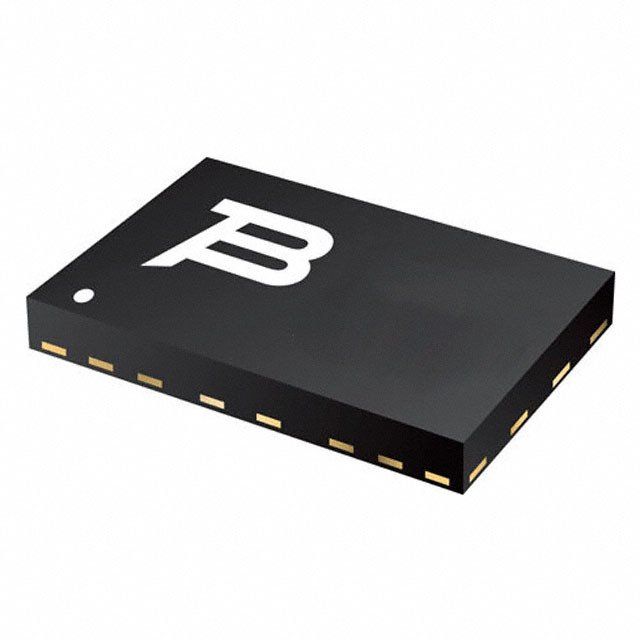

Product Images
