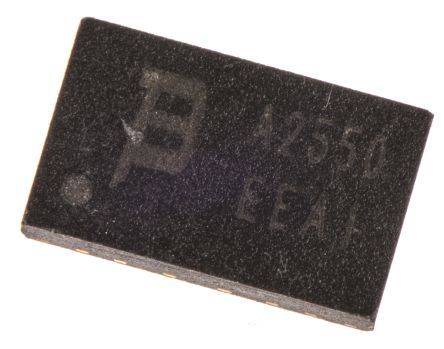

Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface mount package. Features a 250V clamping voltage, 500mA current rating, and 1µs response time for robust ESD protection. Operates at 100V working voltage with a 20V reverse standoff voltage. Rated for 1A peak pulse current and 750mA max surge current. RoHS compliant, with a temperature range of -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns TBU-CA025-500-WH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Clamping Voltage | 250V |
| Current Rating | 500mA |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 0.033inch |
| Length | 0.255inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 750mA |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Voltage | 250V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 1A |
| Reach SVHC Compliant | No |
| Resistance | 2.6R |
| Response Time | 1us |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Series | TBU-CA |
| Termination | Solder |
| Voltage Rating | 250V |
| DC Rated Voltage | 250V |
| Weight | 0.076oz |
| Width | 0.157inch |
| Working Voltage | 100V |
| RoHS | Compliant |
