Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface mount package. Features a 500V clamping voltage and 200mA current rating, with ESD protection. Offers a 1µs response time and 20V reverse standoff voltage. Operating temperature range from -40°C to 125°C. RoHS compliant and supplied in tape and reel packaging.
PackageDFN
Resistance6.6R
Voltage Rating500V
Current Rating200mA
Quick Jump:
Technical Specifications
Bourns TBU-CA050-200-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
500V
Current Rating
200mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Surge Current
300mA
Mount
Surface Mount
Number of Circuits
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
400mA
Reach SVHC Compliant
No
Resistance
6.6R
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
TBU-CA
Termination
Solder
Voltage Rating
500V
DC Rated Voltage
500V
Weight
0.076oz
Width
0.157inch
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-CA050-200-WH Datasheet
Download the complete datasheet for Bourns TBU-CA050-200-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

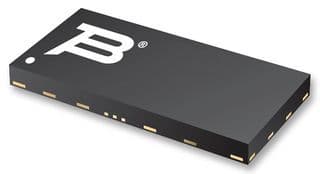

Product Images
