Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface mount package. Features a 500V clamping voltage, 500mA current rating, and 1µs response time. Designed for ESD protection with a 250V working voltage and 20V reverse standoff voltage. Operates across a -40°C to 125°C temperature range. Supplied in tape and reel packaging.
PackageDFN
Voltage Rating500V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-CA050-500-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
500V
Current Rating
500mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Operating Supply Voltage
500V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
1A
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
TBU-CA
Termination
Solder
Voltage Rating
500V
DC Rated Voltage
500V
Weight
0.076oz
Width
0.157inch
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-CA050-500-WH Datasheet
Download the complete datasheet for Bourns TBU-CA050-500-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

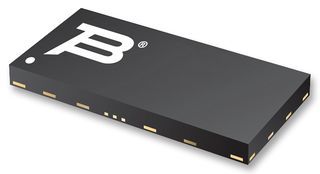

Product Images
