Bidirectional Transient Voltage Suppressor (TVS) diode offering 650V clamping voltage and 300V working voltage. Features a 1µs response time and 50mA current rating, with ESD protection capabilities. Packaged in a DFN surface mount case, this component operates from -40°C to 125°C and is supplied on tape and reel.
PackageDFN
Voltage Rating650V
Current Rating50mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-CA065-050-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
650V
Current Rating
50mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
100mA
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
Yes
Series
TBU-CA
Termination
Solder
Voltage Rating
650V
DC Rated Voltage
650V
Weight
0.076oz
Width
0.157inch
Working Voltage
300V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-CA065-050-WH Datasheet
Download the complete datasheet for Bourns TBU-CA065-050-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

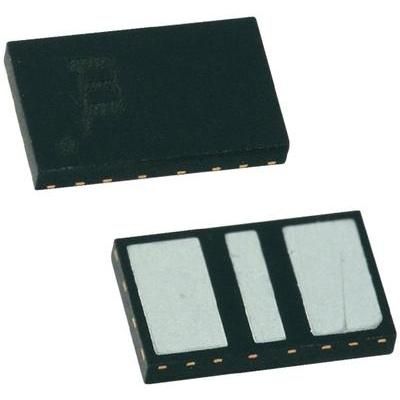

Product Images
