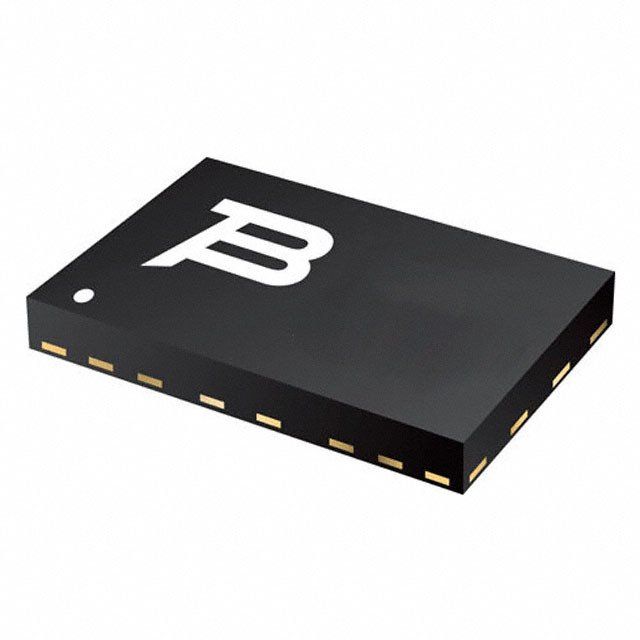

Bidirectional Transient Voltage Suppressor (TVS) diode for surface mount applications. Features 850V clamping voltage, 300mA current rating, and 1µs response time. Offers ESD protection with a 425V working voltage and 20V reverse standoff voltage. Packaged in DFN for tape and reel distribution.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bourns TBU-CA085-300-WH datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DFN |
| Clamping Voltage | 850V |
| Current Rating | 300mA |
| Direction | Bidirectional |
| ESD Protection | Yes |
| Height | 0.033inch |
| Length | 0.255inch |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Surge Current | 450mA |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Operating Supply Voltage | 850V |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 600mA |
| Reach SVHC Compliant | No |
| Resistance | 11.3R |
| Response Time | 1us |
| Reverse Standoff Voltage | 20V |
| RoHS Compliant | Yes |
| Series | TBU-CA |
| Termination | Solder |
| Voltage Rating | 850V |
| DC Rated Voltage | 850V |
| Weight | 0.076oz |
| Width | 0.157inch |
| Working Voltage | 425V |
| RoHS | Compliant |
