Unidirectional Transient Voltage Suppressor (TVS) diode, surface mountable in a DFN package. Features a 500V clamping voltage, 500mA current rating, and 1µs response time. Operates at 250V with a reverse standoff voltage of 18V. Rated for 1A peak pulse current and 750mA output current. RoHS compliant, UL approved, and suitable for operation between -40°C and 125°C.
PackageDFN
Voltage Rating250V
Current Rating500mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-KE050-500-WH technical specifications.
General
Approvals
UL
Package/Case
DFN
Clamping Voltage
500V
Current Rating
500mA
Depth
2.5mm
Direction
Unidirectional
Height
0.85mm
Length
5mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Circuits
1
Operating Supply Voltage
500V
Output Current
750mA
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
1A
Quiescent Current
500uA
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
18V
RoHS Compliant
Yes
Series
TBU-KE
Termination
Solder
Voltage Rating
250V
DC Rated Voltage
250V
Weight
0.002681oz
Width
2.5mm
Working Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Bourns TBU-KE050-500-WH Datasheet
Download the complete datasheet for Bourns TBU-KE050-500-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

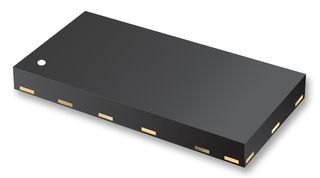

Product Images
