Bidirectional Transient Voltage Suppressor (TVS) diode in a DFN surface-mount package. Features a 300V working voltage, 500V clamping voltage, and 100mA current rating. Offers 1µs response time and ESD protection. Operates across a -55°C to 125°C temperature range.
PackageDFN
Voltage Rating300V
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TBU-PK050-100-WH technical specifications.
General
Package/Case
DFN
Clamping Voltage
500V
Current Rating
100mA
Direction
Bidirectional
ESD Protection
Yes
Height
0.033inch
Length
0.255inch
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Mount
Surface Mount
Number of Circuits
2
Operating Supply Voltage
500V
Package Quantity
3000
Packaging
Tape and Reel
Peak Pulse Current
200mA
Reach SVHC Compliant
No
Response Time
1us
Reverse Standoff Voltage
20V
RoHS Compliant
No
Series
TBU-PK
Termination
Solder
Voltage Rating
300V
DC Rated Voltage
300V
Width
0.157inch
Working Voltage
300V
Compliance
RoHS
Not Compliant
Datasheet
Bourns TBU-PK050-100-WH Datasheet
Download the complete datasheet for Bourns TBU-PK050-100-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

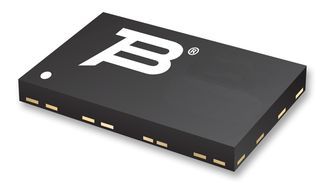

Product Images
