Surface mount cermet trimmer resistor with 20kR resistance and 25% tolerance. Features a 0.1W power dissipation rating and operates across a temperature range of -40°C to 100°C. This component offers 1 electrical and 1 mechanical turn, with a compact 3mm x 3.8mm footprint. Packaged in tape and reel for automated assembly.
Resistance20kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TC33X-2-203E technical specifications.
General
| Depth | 3.8mm |
| Height | 0.047inch |
| Length | 3mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Mount | Surface Mount |
| Number of Turns | 1 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 20kR |
| Resistance Tolerance | 25% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | TC33 |
| Termination | Foot Print |
| Tolerance | 25% |
| Width | 0.118inch |
Compliance
| RoHS | Compliant |
Datasheet
Bourns TC33X-2-203E Datasheet
Download the complete datasheet for Bourns TC33X-2-203E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

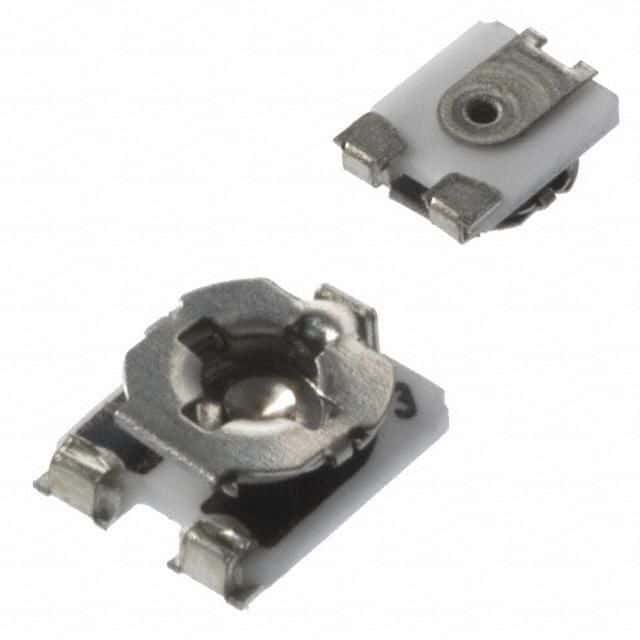

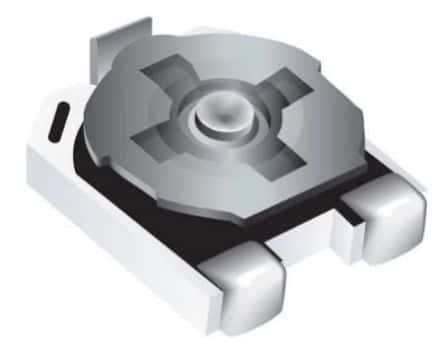

Product Images
