Cermet trimmer resistor, 5 kOhm resistance with 25% tolerance, rated for 150 mW power dissipation. Features a single turn adjustment, surface mount termination, and a DC rated voltage of 50V. Operates within a temperature range of -40°C to 100°C. Packaged in tape and reel for automated assembly.
Resistance5kR
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TC33X-2-502E technical specifications.
General
| Color | Silver |
| Depth | 3mm |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 3.8mm |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 100mW |
| Mount | Surface Mount |
| Number of Turns | 1 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resistance | 5kR |
| Resistance Tolerance | 25% |
| Resistor Type | Cermet |
| RoHS Compliant | Yes |
| Series | TC33 |
| Termination | SMD/SMT |
| Tolerance | 25% |
| DC Rated Voltage | 50V |
| Weight | 29.4mg |
Compliance
| RoHS | Compliant |
Datasheet
Bourns TC33X-2-502E Datasheet
Download the complete datasheet for Bourns TC33X-2-502E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

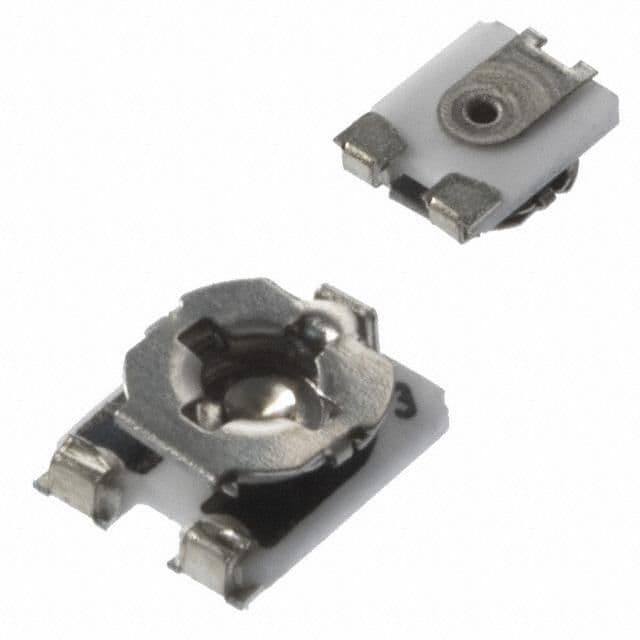

Product Images
