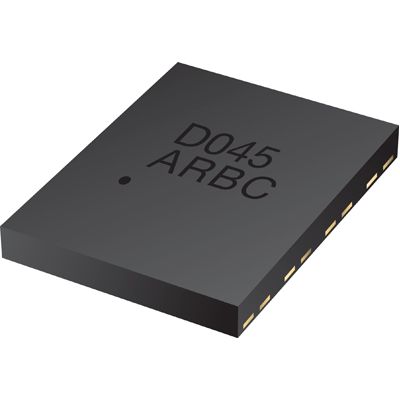

Bourns TCS-DL004-500-WH technical specifications.
| Package/Case | DFN |
| Current Rating | 750mA |
| Depth | 4.1mm |
| Height | 0.85mm |
| Length | 3.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of Circuits | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | TCS-DL |
| Termination | SMD/SMT |
| Voltage Rating | 40V |
| DC Rated Voltage | 40V |
| Width | 3.5mm |
| Working Voltage | 40V |
| RoHS | Compliant |
