Technical Specifications
Bourns TCS-DL004-750-WH technical specifications.
General
| Package/Case | DFN |
| Current Rating | 1.1A |
| Depth | 4.1mm |
| Height | 0.85mm |
| Length | 4.6mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount, PCB |
| Number of Circuits | 2 |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Series | TCS-DL |
| Termination | SMD/SMT |
| Voltage Rating | 40V |
| DC Rated Voltage | 40V |
| Width | 4.5mm |
| Working Voltage | 40V |
Compliance
| RoHS | Compliant |
Datasheet
Bourns TCS-DL004-750-WH Datasheet
Download the complete datasheet for Bourns TCS-DL004-750-WH to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

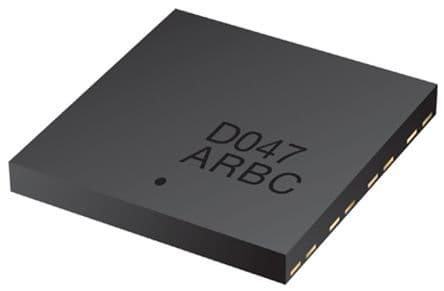

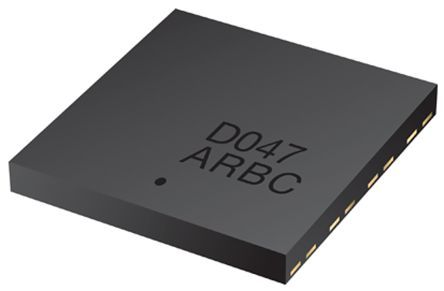

Product Images
