The TISP7015DR-S is a surface mount transient voltage suppressor with a capacitance of 40pF and a current rating of 5A. It is packaged in a SOIC-8 package and is rated for operation between -40°C and 150°C. The device is RoHS compliant and has a maximum repetitive reverse voltage of 8V. It is available in quantities of 2500 on tape and reel. The TISP7015DR-S is suitable for use in a variety of applications requiring transient voltage suppression.
PackageSOIC
Capacitance40pF
Current Rating5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Bourns TISP7015DR-S technical specifications.
General
| Capacitance | 40pF |
| Package/Case | SOIC |
| Current Rating | 5A |
| Hold Current | 30mA |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Repetitive Reverse Voltage (Vrrm) | 8V |
| Mount | Surface Mount |
| Number of Elements | 3 |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Peak Pulse Current | 150A |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Bourns TISP7015DR-S Datasheet
Download the complete datasheet for Bourns TISP7015DR-S to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

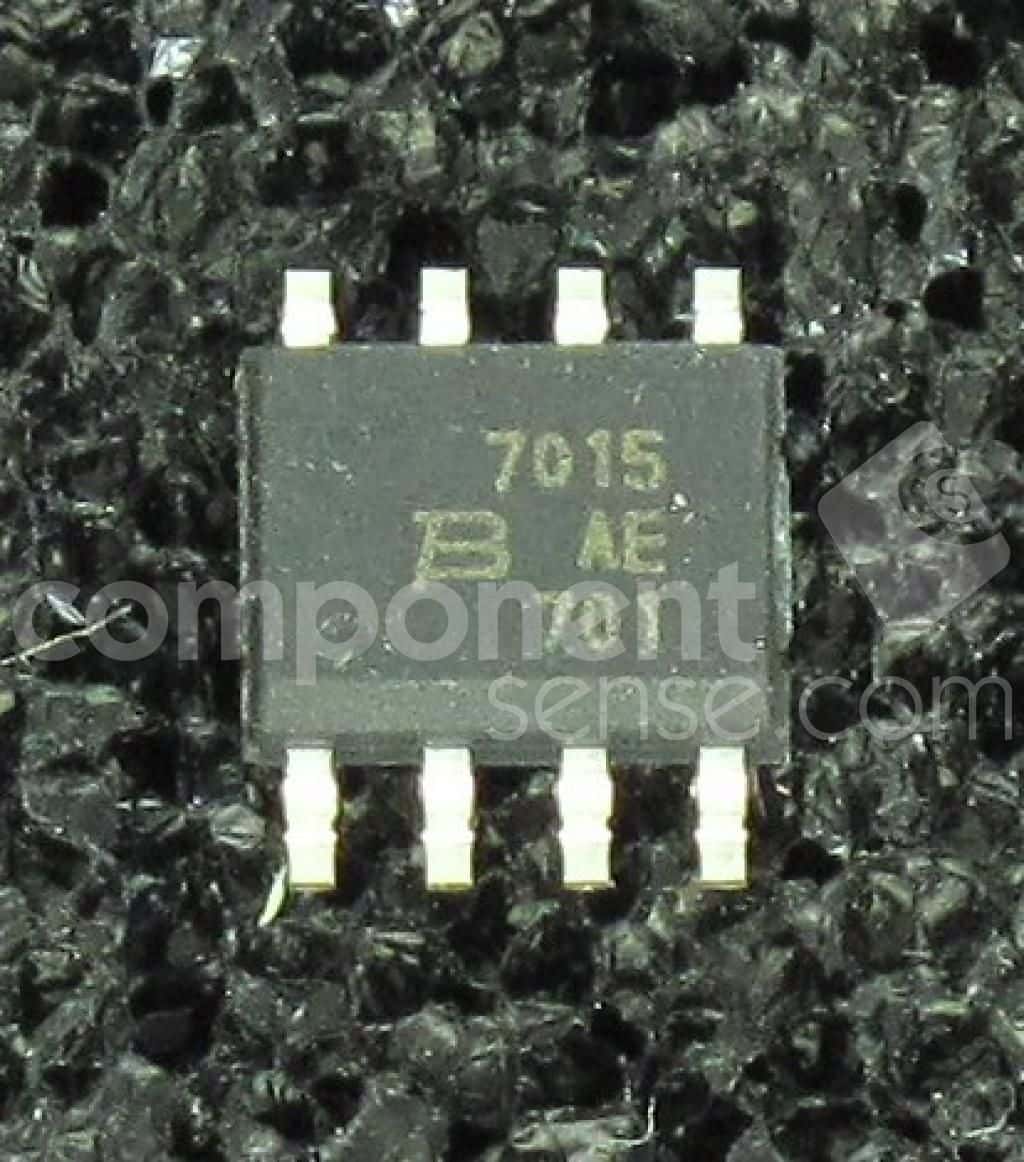

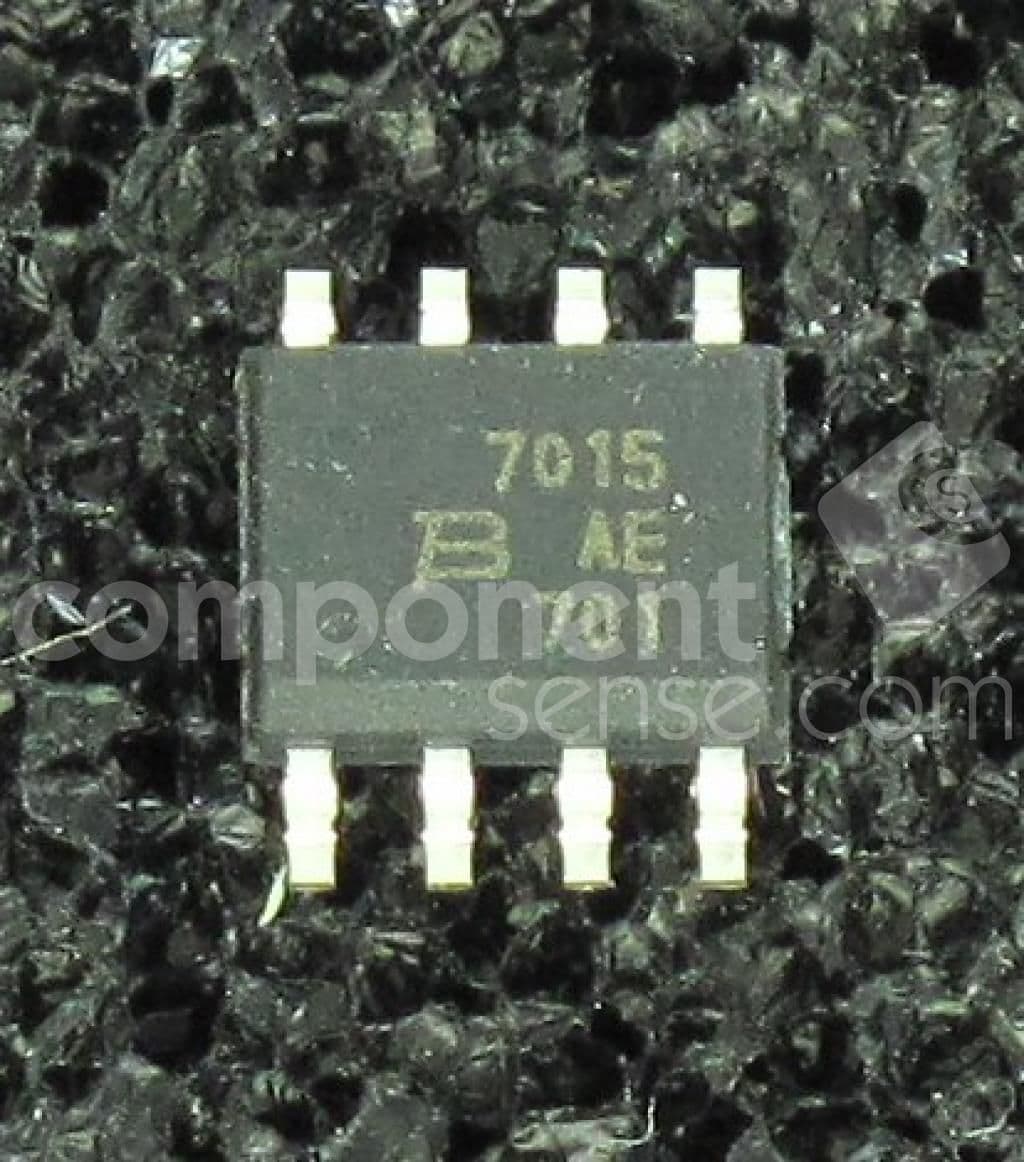

Product Images
