Broadcom
ACPL-C78A-060E
Isolation Amplifier, 1 Func, 5000V Isolation-Min, 100MHz Band Width, PDSO8, ROHS COMPLIANT, SSOP-8
PackageSOIC
Current11mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ACPL-C78A-060E technical specifications.
General
-3db Bandwidth
100kHz
Amplifier Type
ISOLATION
Bandwidth
100kHz
Package/Case
SOIC
Height
3.18mm
Input Offset Voltage (Vos)
300uV
Isolation Voltage
5kV
Length
5.85mm
Max Input Voltage
5.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Operating Supply Current
11mA
Operating Supply Voltage
5.5V
Output Current per Channel
18.6mA
Package Quantity
80
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
11mA
Width
6.807mm
Compliance
RoHS
Compliant
Datasheet
Broadcom ACPL-C78A-060E Datasheet
Download the complete datasheet for Broadcom ACPL-C78A-060E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

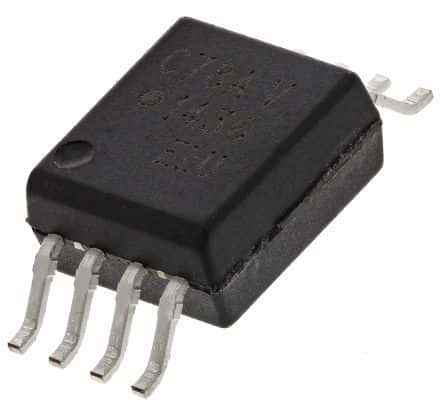

Product Images
