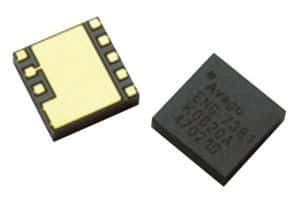

The ACPM-7813-BLK is a single channel RF amplifier from Broadcom, featuring a maximum operating frequency of 849MHz and a gain of 28.5dB. It operates within a temperature range of -30°C to 85°C and has a maximum power dissipation of 2.5W. The amplifier is supplied with a voltage between 3.2V and 4.2V, drawing an operating supply current of 520mA. It is available in a surface mount package and is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ACPM-7813-BLK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ACPM-7813-BLK technical specifications.
| Package/Case | SMD/SMT |
| Frequency | 849MHz |
| Gain | 28.5dB |
| Max Frequency | 849MHz |
| Min Frequency | 824MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Power Dissipation | 2.5W |
| Max Supply Voltage | 4.2V |
| Min Supply Voltage | 3.2V |
| Mount | Surface Mount |
| Noise Figure | 4.5dB |
| Number of Channels | 1 |
| Operating Frequency | 849 MHz |
| Operating Supply Current | 520mA |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 520mA |
| RoHS | Compliant |
