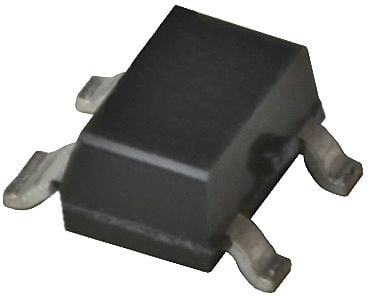

Wide band RF amplifier with a 3.2GHz bandwidth, operating from 0Hz to 2.5GHz. Features 18.5dB gain at 900MHz and a 4dB noise figure. This surface mount component is housed in a 4-pin SOT-343 package, measuring 2.25mm x 1.35mm x 1mm. Operates with a 3.5V supply voltage and consumes 35mA, with a maximum power dissipation of 270mW. Suitable for a wide temperature range of -40°C to 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ADA-4643-BLKG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Bandwidth | 3.2GHz |
| Package/Case | SOT-343 |
| Gain | 18.5dB |
| Height | 1mm |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 2.25mm |
| Max Frequency | 2.5GHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 270mW |
| Max Supply Voltage | 3.9V |
| Min Supply Voltage | 3.2V |
| Mount | Surface Mount |
| Noise Figure | 4dB |
| Number of Channels | 1 |
| Operating Frequency | 0 Hz to 2.5 GHz |
| Operating Supply Current | 35mA |
| Operating Supply Voltage | 3.5V |
| P1dB | 13.4dBm |
| Package Quantity | 100 |
| Packaging | Bag |
| Power Dissipation | 270mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 35mA |
| Test Frequency | 900MHz |
| Width | 1.35mm |
| RoHS | Compliant |
