Frequency1.575GHz
PackageSMD/SMT
Current8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ALM-1412-BLKG technical specifications.
General
Package/Case
SMD/SMT
Frequency
1.575GHz
Gain
12.2dB
Max Frequency
1.575GHz
Min Frequency
1.575GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
72mW
Max Supply Voltage
3.6V
Min Supply Voltage
1V
Mount
Surface Mount
Noise Figure
0.82dB
Number of Channels
1
Operating Frequency
1.575 GHz
Operating Supply Current
9.8mA
P1dB
4.5dBm
Package Quantity
100
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Supply Current
8mA
Test Frequency
1.575GHz
Compliance
RoHS
Compliant
Datasheet
Broadcom ALM-1412-BLKG Datasheet
Download the complete datasheet for Broadcom ALM-1412-BLKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

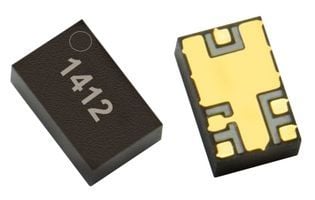

Product Images
