Technical Specifications
Broadcom ALM-2506-BLKG technical specifications.
General
| Package/Case | SMD/SMT |
| Frequency | 900MHz |
| Gain | 14.3dB |
| Max Frequency | 2.4GHz |
| Min Frequency | 900MHz |
| Max Power Dissipation | 54mW |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 1V |
| Mount | Surface Mount |
| Noise Figure | 0.8dB |
| Operating Supply Current | 8mA |
| Operating Supply Voltage | 2.85V |
| P1dB | 1.8dBm |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 8mA |
| Test Frequency | 1.57542GHz |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Broadcom ALM-2506-BLKG Datasheet
Download the complete datasheet for Broadcom ALM-2506-BLKG to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

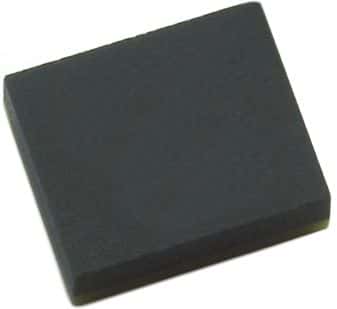

Product Images
