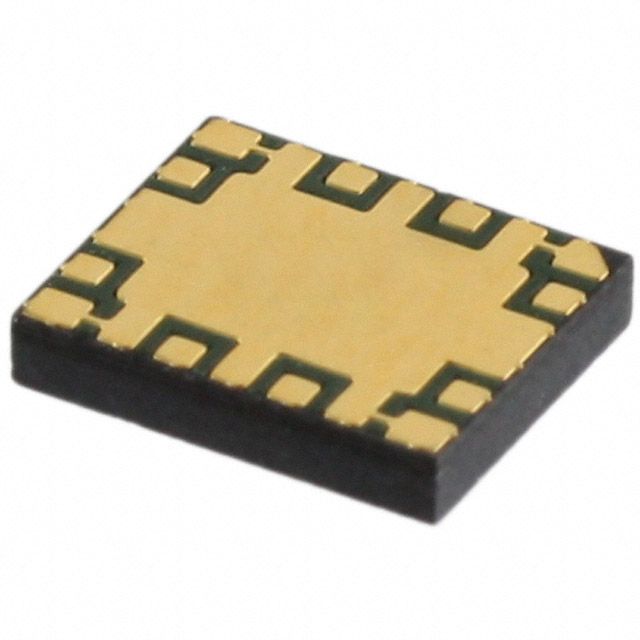

Surface Mount RF Amplifier with 14.9dB gain at 2GHz, operating from a 5V supply. This general-purpose amplifier features a 2.7GHz maximum frequency, 50 Ohm impedance, and a 2.7dB noise figure. It offers a P1dB of 31.5dBm and a maximum power dissipation of 4.125W. The component is housed in an SMD/SMT package with dimensions of 6mm (length) x 5mm (width) x 1.1mm (height).
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ALM-31222-BLKG datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ALM-31222-BLKG technical specifications.
| Amplifier Type | GENERAL PURPOSE |
| Package/Case | SMD/SMT |
| Dual Supply Voltage | 5V |
| Frequency | 2.7GHz |
| Gain | 14.9dB |
| Height | 1.1mm |
| Impedance | 50R |
| Length | 6mm |
| Max Frequency | 2.7GHz |
| Min Frequency | 1.7GHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 4.125W |
| Max Supply Current | 750mA |
| Max Supply Voltage | 5V |
| Mount | Surface Mount |
| Noise Figure | 2.7dB |
| Number of Channels | 1 |
| Operating Frequency | 2.7 GHz |
| Operating Supply Current | 415mA |
| P1dB | 31.5dBm |
| Package Quantity | 100 |
| Packaging | Strip |
| Power Dissipation | 4.125W |
| Power Supply | 5V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 750mA |
| Termination | SMD/SMT |
| Test Frequency | 2GHz |
| Width | 5mm |
| RoHS | Compliant |
