Wide bandwidth RF amplifier operating from 6 GHz to 20 GHz, featuring 14.5dB gain at 20GHz. This general-purpose amplifier offers a 19.5dBm P1dB and a 4.4dB noise figure, with a 50 Ohm impedance. Designed for surface mount applications, it operates within a 3V to 7V supply voltage range and is housed in a lead-free, gold-plated chip package. The component boasts a wide operating temperature range of -55°C to 150°C.
Frequency20GHz
PackageCHIP
Current107mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AMMC-5618-W10 technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
20GHz
Package/Case
CHIP
Contact Plating
Gold
Frequency
20GHz
Gain
14.5dB
Height
0.1mm
Impedance
50R
Lead Free
Lead Free
Length
0.92mm
Max Frequency
20GHz
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Supply Voltage
7V
Min Supply Voltage
3V
Mount
Surface Mount
Noise Figure
4.4dB
Number of Channels
1
Operating Frequency
6 GHz to 20 GHZ
Operating Supply Voltage
5V
P1dB
19.5dBm
Package Quantity
10
Packaging
Tray
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
107mA
Test Frequency
20GHz
Type
General Purpose
Width
0.92mm
Compliance
RoHS
Compliant
Datasheet
Broadcom AMMC-5618-W10 Datasheet
Download the complete datasheet for Broadcom AMMC-5618-W10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

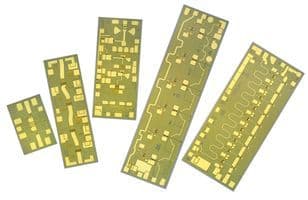

Product Images
