RF Amplifier, 6 GHz to 20 GHz operating frequency, 14 GHz bandwidth, and 13 dB gain. Features a 5x5 mm surface mount package with gold contact plating. Delivers 19 dBm output power and P1dB, with a 4.4 dB noise figure. Operates with a 5V supply voltage and 107mA current, with a maximum operating temperature of 150°C.
Frequency20GHz
PackageSMD/SMT
Current107mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AMMP-5618-BLK technical specifications.
General
| Bandwidth | 14GHz |
| Package/Case | SMD/SMT |
| Contact Plating | Gold |
| Frequency | 20GHz |
| Gain | 13dB |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 20GHz |
| Min Frequency | 6GHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Supply Current | 150mA |
| Max Supply Voltage | 7V |
| Mount | Surface Mount |
| Noise Figure | 4.4dB |
| Number of Channels | 1 |
| Operating Frequency | 6 GHz to 20 GHZ |
| Operating Supply Current | 107mA |
| Operating Supply Voltage | 5V |
| Output Power (dBm) | 19dBm |
| P1dB | 19dBm |
| Package Quantity | 10 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 107mA |
| Test Frequency | 6GHz |
| Thickness | 1.9mm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom AMMP-5618-BLK Datasheet
Download the complete datasheet for Broadcom AMMP-5618-BLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

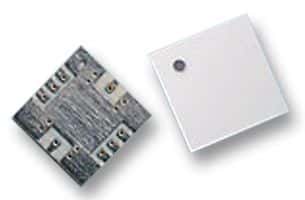

Product Images
