Surface mount RF amplifier operating from 6 GHz to 20 GHz with a 14 GHz bandwidth. Features 22dB gain, 2.5dB noise figure, and 10dBm P1dB at 6GHz. This single-channel, single-amplifier component utilizes GAAS technology and operates with a 3V supply voltage and 55mA current. Packaged in a 5x5mm SMT case, it supports a maximum supply voltage of 7V and operates within a temperature range of -65°C to 150°C. RoHS compliant and lead-free.
Frequency20GHz
PackageSMD/SMT
Current55mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AMMP-6220-BLK technical specifications.
General
| Bandwidth | 14GHz |
| Package/Case | SMD/SMT |
| Frequency | 20GHz |
| Gain | 22dB |
| Impedance | 50R |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Frequency | 20GHz |
| Min Frequency | 6GHz |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Supply Voltage | 7V |
| Mount | Surface Mount |
| Noise Figure | 2.5dB |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Operating Frequency | 6 GHz to 20 GHZ |
| Operating Supply Current | 55mA |
| Operating Supply Voltage | 3V |
| P1dB | 10dBm |
| Package Quantity | 10 |
| Packaging | Bulk |
| Power Supply | 7V |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 55mA |
| Technology | GAAS |
| Test Frequency | 6GHz |
| Thickness | 1.9mm |
| Width | 5mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom AMMP-6220-BLK Datasheet
Download the complete datasheet for Broadcom AMMP-6220-BLK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

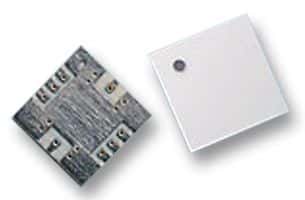

Product Images
