Analog ambient light sensor with I2C and analog output capabilities, designed for surface mount applications. Features a 5ms fall time and operates across a wide temperature range from -40°C to 85°C. Supports supply voltages from 1.8V to 5.5V, with a maximum output current of 40uA. Packaged in a compact 2.4mm x 2mm x 0.8mm SMD/SMT chip, supplied on tape and reel.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom APDS-9005-020 technical specifications.
General
Package/Case
SMD/SMT
Fall Time
5ms
Height
0.8mm
Lead Free
Lead Free
Length
2.4mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage (DC)
5.5V
Min Supply Voltage (DC)
1.8V
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Output Current
40uA
Package Quantity
2500
Packaging
Tape and Reel
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Wavelength
500nm
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Broadcom APDS-9005-020 Datasheet
Download the complete datasheet for Broadcom APDS-9005-020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

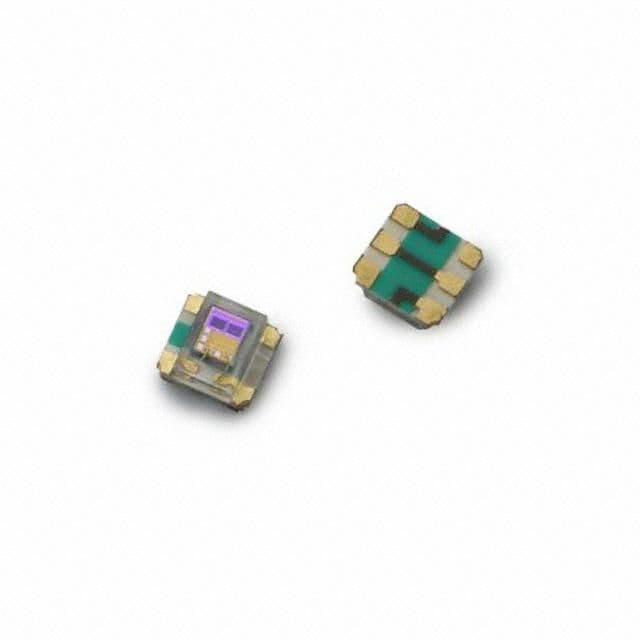

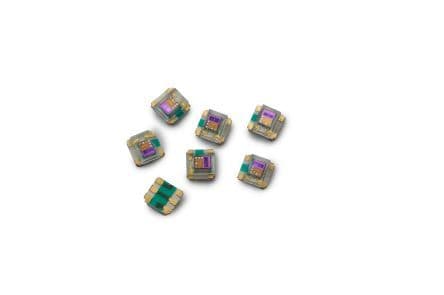

Product Images
