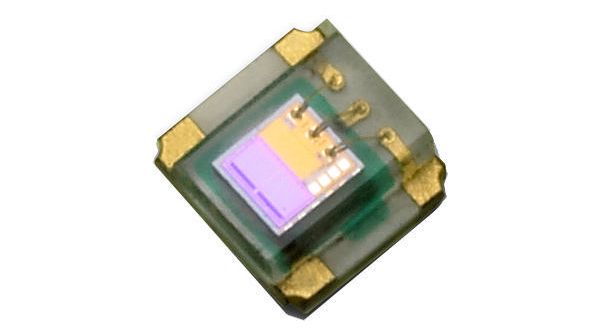

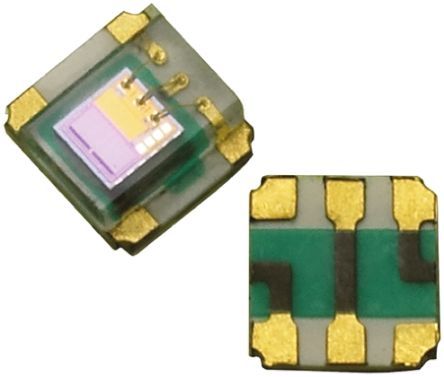

The APDS-9008-020 is a surface mount ambient light sensor with an operating temperature range of -40°C to 85°C. It has a maximum supply voltage of 5.5V and a supply current of 42uA. The device has a wavelength of 565nm and is available in a package quantity of 2500 units per reel. The APDS-9008-020 is a chip LED with a height of 0.55mm and a length of 1.5mm, and it is suitable for use in applications where a small form factor is required.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom APDS-9008-020 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Fall Time | 5ms |
| Height | 0.55mm |
| Length | 1.5mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 1.6V |
| Mount | Surface Mount |
| Operating Supply Voltage | 5.5V |
| Output Current | 40uA |
| Output Type | Analog |
| Package Quantity | 2500 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Supply Current | 42uA |
| Termination | SMD/SMT |
| Wavelength | 565nm |
| Width | 1.6mm |
| RoHS | Compliant |
