PackageQFN
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom APDS-9702-020 technical specifications.
General
Package/Case
QFN
Height
0.5mm
Length
2mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Voltage
300mV
Max Supply Voltage
3.6V
Min Supply Voltage
2.4V
Mount
Surface Mount
Operating Supply Current
70uA
Output Configuration
Analog
Output Type
Analog
Package Quantity
1
Packaging
Tape and Reel
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sensing Distance
200mm
Sensing Method
Optical
Termination
SMD/SMT
Width
2mm
Compliance
RoHS
Compliant
Datasheet
Broadcom APDS-9702-020 Datasheet
Download the complete datasheet for Broadcom APDS-9702-020 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

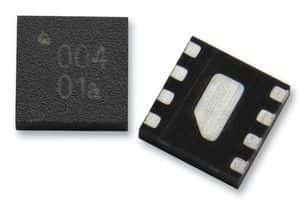

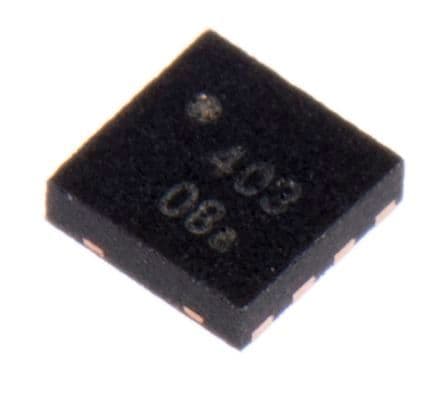

Product Images
