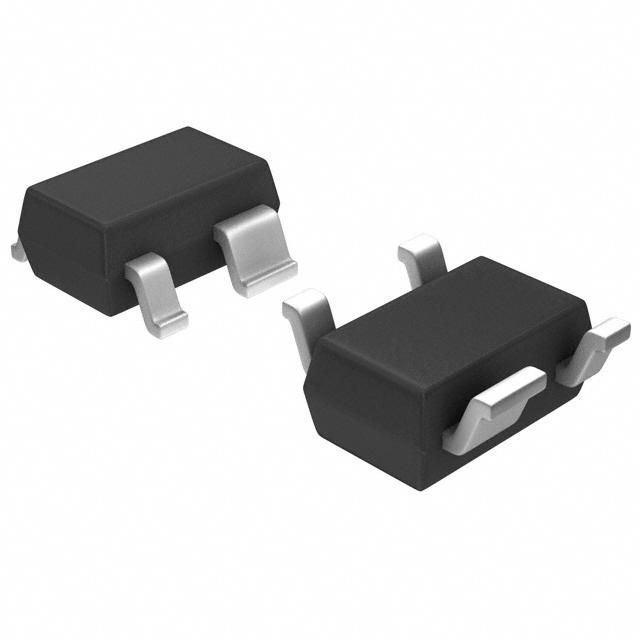

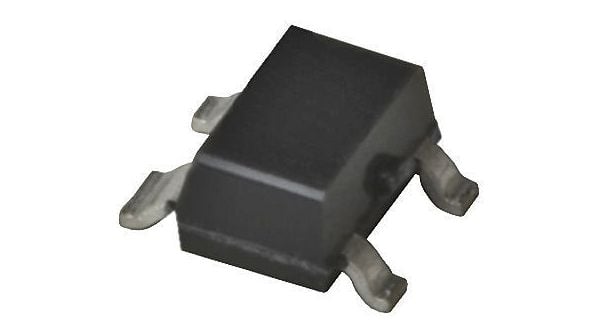

Surface mount RF small signal field-effect transistor, N-channel, Gallium Arsenide (GaAs) technology. Features a 1-element design operating in the X-band with a 2 GHz frequency. Delivers 16dB gain, 0.4dB noise figure, and 12dBm P1dB. Maximum drain current is 145mA with a drain-to-source voltage of 4.5V. Packaged in a 4-pin SC-70 (SOT-343) with matte tin contact plating, this lead-free and RoHS compliant component operates from -65°C to 160°C.
Frequency2GHz
PackageSOT-343
Current118mA
Voltage Rating4.5V
Quick Jump:
Technical Specifications
Broadcom ATF-38143-BLKG technical specifications.
General
Package/Case
SOT-343
Contact Plating
Tin, Matte
Continuous Drain Current (ID)
145mA
Drain to Source Voltage (Vdss)
4.5V
Frequency
2GHz
Gain
16dB
Gate to Source Voltage (Vgs)
-4V
Lead Free
Lead Free
Max Operating Temperature
160°C
Min Operating Temperature
-65°C
Max Power Dissipation
580mW
Mount
Surface Mount
Noise Figure
0.4dB
Operating Frequency
2 GHz
Operating Supply Voltage
4.5V
P1dB
12dBm
Package Quantity
100
Packaging
Bag
Polarity
N-CHANNEL
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
118mA
Technology
GAAS
Test Voltage
2V
Voltage Rating
4.5V
DC Rated Voltage
4.5V
Compliance
RoHS
Compliant
Datasheet
Broadcom ATF-38143-BLKG Datasheet
Download the complete datasheet for Broadcom ATF-38143-BLKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
