RF Small Signal Field-Effect Transistor, C Band, Silicon, N-Channel, High Electron Mobility FET. Features 2 GHz operating frequency with 15.5dB gain and a 1.1dB noise figure. Supports up to 1A continuous drain current and 7V drain-to-source voltage. Surface mount SOT-89 package with tin, matte contact plating. Operates from -65°C to 150°C with 2.25W power dissipation.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ATF-50189-BLK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Broadcom ATF-50189-BLK technical specifications.

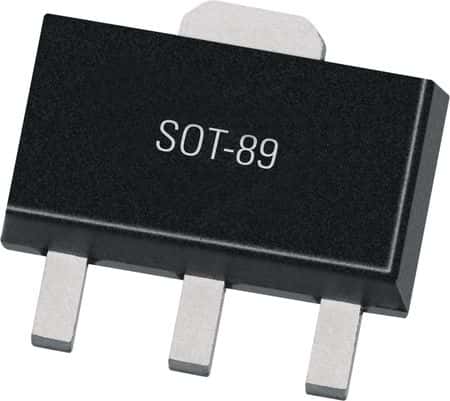

| Package/Case | SOT-89 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 1A |
| Drain to Source Voltage (Vdss) | 7V |
| Dual Supply Voltage | 4.5V |
| FET Technology | HIGH ELECTRON MOBILITY |
| Frequency | 2GHz |
| Gain | 15.5dB |
| Gate to Source Voltage (Vgs) | 800mV |
| Height | 1.6mm |
| Highest Frequency Band | C BAND |
| Lead Free | Lead Free |
| Length | 4.6mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 2.25W |
| Mount | Surface Mount |
| Noise Figure | 1.1dB |
| Nominal Vgs | 380mV |
| Operating Frequency | 2 GHz |
| Package Quantity | 100 |
| Packaging | Bag |
| Power Dissipation | 2.25W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 280mA |
| Technology | GAAS |
| Termination | SMD/SMT |
| Test Voltage | 4.5V |
| DC Rated Voltage | 4.5V |
| Width | 2.6mm |
| RoHS | Compliant |
