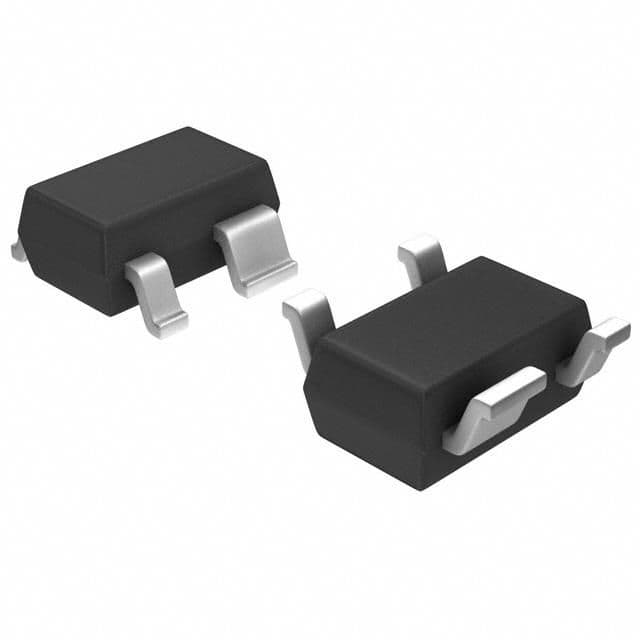

The ATF-54143-TR1 is a 5V RF transistor with a power dissipation of 725mW. It is packaged in a SOT-343 plastic case with 4 pins. The device is not RoHS compliant and contains lead. It has a gain of 16.6dB and a noise figure of 0.5dB. The ATF-54143-TR1 is available in tape and reel packaging.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom ATF-54143-TR1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-343 |
| Frequency | 2GHz |
| Gain | 16.6dB |
| Lead Free | Contains Lead |
| Noise Figure | 0.5dB |
| Packaging | Tape and Reel |
| Power Dissipation | 725mW |
| RoHS Compliant | No |
| Test Voltage | 3V |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
| RoHS | Not Compliant |
Download the complete datasheet for Broadcom ATF-54143-TR1 to view detailed technical specifications.
