Surface mount RF small signal field-effect transistor featuring N-channel, Gallium Arsenide (GaAs) technology for C-band operation. This 4-pin SC-70 packaged device offers a 2 GHz operating frequency, 16.6 dB gain, and a low 0.5 dB noise figure. It supports a continuous drain current of 120mA and a drain-to-source voltage of 5V, with a maximum power dissipation of 725mW. Operating across a wide temperature range from -65°C to 150°C, this RoHS compliant component is supplied on tape and reel.
Frequency2GHz
PackageSOT-343
Voltage Rating5V
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom ATF-54143-TR1G technical specifications.
General
| Package/Case | SOT-343 |
| Contact Plating | Tin, Matte |
| Continuous Drain Current (ID) | 120mA |
| Drain to Source Voltage (Vdss) | 5V |
| Frequency | 2GHz |
| Gain | 16.6dB |
| Gate to Source Voltage (Vgs) | 1V |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Power Dissipation | 725mW |
| Mount | Surface Mount |
| Noise Figure | 0.5dB |
| Operating Frequency | 2 GHz |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Polarity | N-CHANNEL |
| Power Dissipation | 725mW |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Technology | GAAS |
| Test Voltage | 3V |
| Voltage Rating | 5V |
| DC Rated Voltage | 5V |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom ATF-54143-TR1G Datasheet
Download the complete datasheet for Broadcom ATF-54143-TR1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

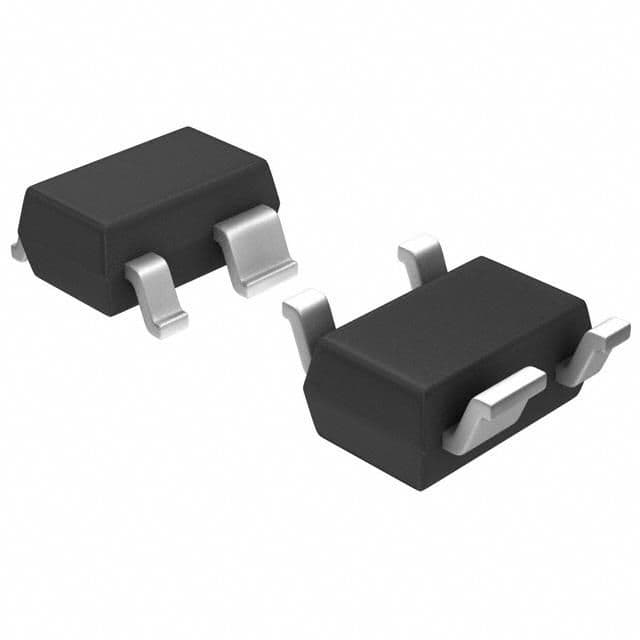

Product Images
