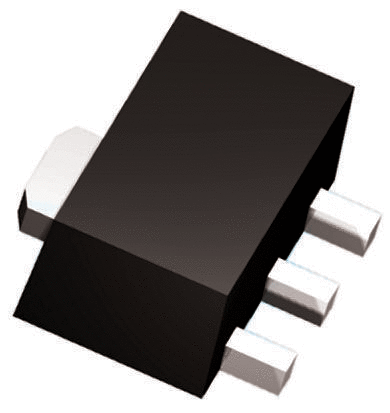

Surface mount RF amplifier with a frequency range of 50MHz to 6GHz. Features 17.1dB gain at 2GHz, 4.1dB noise figure, and 17.4dBm P1dB. Operates from a 5V supply with 58mA current consumption and 430mW power dissipation. Packaged in a SOT-89, 3-pin plastic housing with tin, matte contact plating. RoHS compliant, operating temperature range of -40°C to 85°C.
Frequency50MHz
PackageSOT-89
Current58mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom AVT-54689-BLKG technical specifications.
General
| Package/Case | SOT-89 |
| Contact Plating | Tin, Matte |
| Frequency | 50MHz |
| Gain | 17.1dB |
| Height | 1.6mm |
| Length | 4.6mm |
| Max Frequency | 6GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 430mW |
| Max Supply Voltage | 5.5V |
| Mount | Surface Mount |
| Noise Figure | 4.1dB |
| Number of Channels | 1 |
| Operating Supply Current | 58mA |
| Operating Supply Voltage | 5V |
| P1dB | 17.4dBm |
| Package Quantity | 100 |
| Packaging | Cut Tape |
| Power Dissipation | 430mW |
| Power Supply | 5V |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 58mA |
| Test Frequency | 2GHz |
| Width | 2.6mm |
Compliance
| RoHS | Compliant |
