PackageDIP
MountingThrough Hole
Power60mW
Quick Jump:
Technical Specifications
Broadcom HCNR200-000E technical specifications.
General
Approvals
UL, CSA, VDE
Package/Case
DIP
Current Transfer Ratio
0.75%
Forward Current
20mA
Input Current
20mA
Input Type
DC
Isolation Voltage
5kV
Lead Free
Lead Free
Max Input Current
25mA
Max Operating Temperature
100°C
Min Operating Temperature
-55°C
Max Power Dissipation
60mW
Mount
Through Hole
Number of Channels
1
Number of Elements
1
Package Quantity
42
Packaging
Rail/Tube
Power Dissipation
60mW
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
2.5V
Reverse Voltage (DC)
2.5V
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Broadcom HCNR200-000E Datasheet
Download the complete datasheet for Broadcom HCNR200-000E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

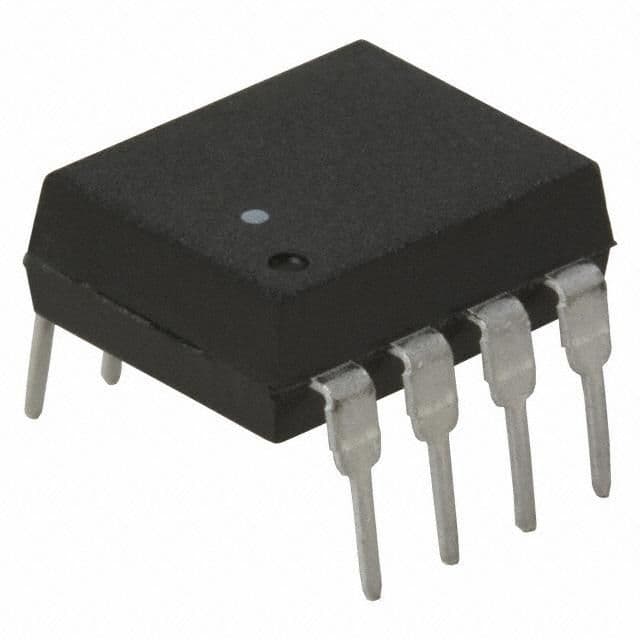

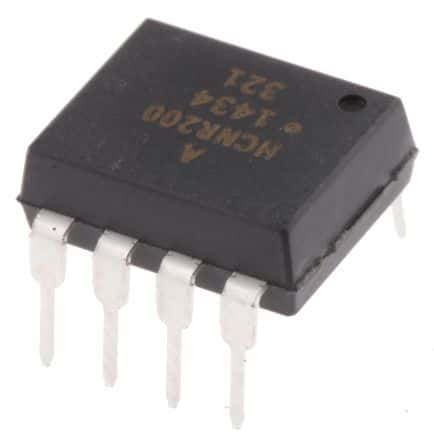

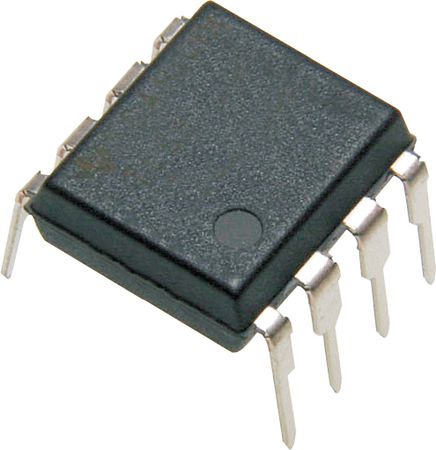

Product Images
