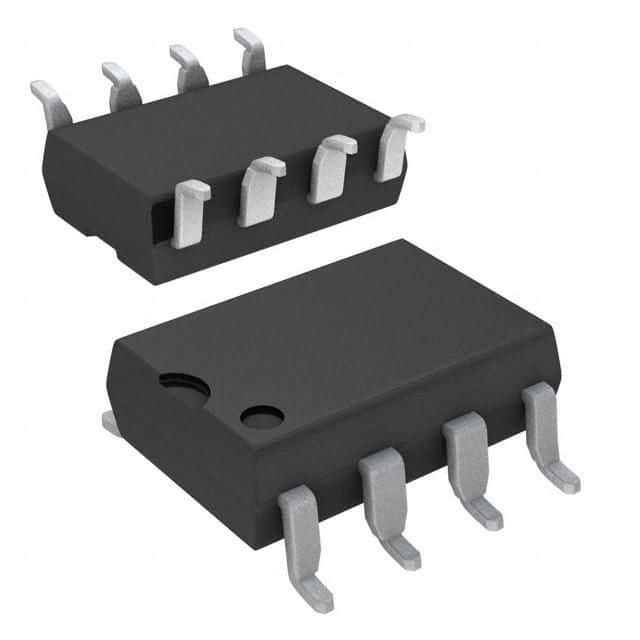

The HCNR200-550E optocoupler has a current transfer ratio of 0.75% and a maximum input current of 25mA. It operates over a temperature range of -55°C to 100°C and has a maximum power dissipation of 60mW. The device is packaged in a surface mount DIP-8 package and is RoHS compliant. It features a 5kV isolation voltage and a maximum output voltage of 15V.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCNR200-550E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SMD/SMT |
| Current Transfer Ratio | 0.75% |
| Forward Current | 20mA |
| Input Current | 20mA |
| Input Type | DC |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Max Input Current | 25mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 60mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Voltage | 15V |
| Package Quantity | 750 |
| Packaging | Tape and Reel |
| Power Dissipation | 60mW |
| Reverse Breakdown Voltage | 2.5V |
| RoHS Compliant | Yes |
| RoHS | Compliant |
