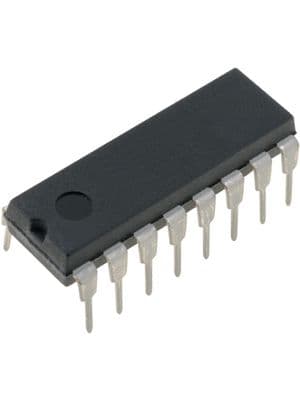

The HCTL-2001-A00 is an 8-bit dual counter/decoder IC from Broadcom. It operates within a temperature range of -40°C to 85°C and is supplied with a voltage of 5V. The IC is packaged in a PDIP format and is available in quantities of 50. It is compliant with RoHS regulations and is suitable for use in through-hole mounting applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HCTL-2001-A00 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | PDIP |
| Height | 0.195inch |
| Interface | 8 bit |
| Lead Free | Lead Free |
| Length | 19.3mm |
| Logic Function | Counter, Decoder |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 4.5V |
| Mount | Through Hole |
| Number of Bits | 8 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Voltage | 5V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Polarity | Inverting |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Width | 0.26inch |
| RoHS | Compliant |
