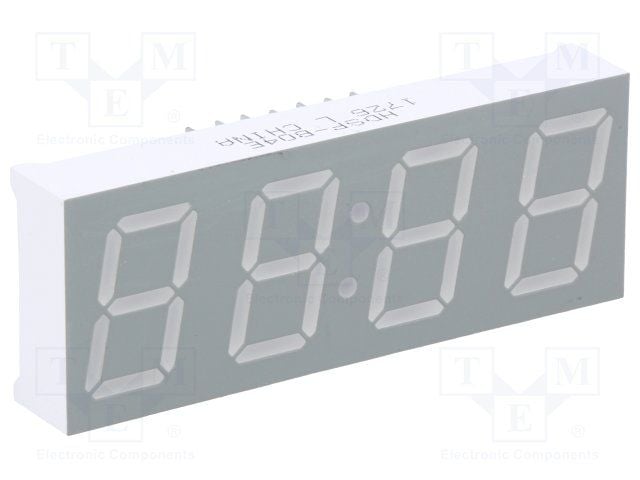

Four-digit red numeric LED display in a DIP package, featuring through-hole mounting. This segment display offers a luminous intensity of 5.5mcd at a forward current of 20mA and an operating supply voltage of 2.05V. Operating across a temperature range of -40°C to 105°C, it has a maximum power dissipation of 65mW. The display's viewing area measures 14.22mm in height and 7.8mm in length, with a wavelength of 622nm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HDSP-B04E datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Color | Red |
| Depth | 19.1mm |
| Display Type | Segment |
| Forward Current | 20mA |
| Height | 0.752inch |
| Illumination Color | Red |
| Length | 2.02inch |
| Luminous Intensity | 5.5mcd |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -40°C |
| Max Power Dissipation | 65mW |
| Mount | Through Hole |
| Number of Characters | 4 |
| Number of Elements | 30 |
| Operating Supply Voltage | 2.05V |
| Package Quantity | 250 |
| Packaging | Rail/Tube |
| Power Consumption | 65mW |
| Power Dissipation | 65mW |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Viewing Area (height) | 14.22mm |
| Viewing Area Length | 7.8mm |
| Wavelength | 622nm |
| Width | 2.016inch |
| RoHS | Compliant |
