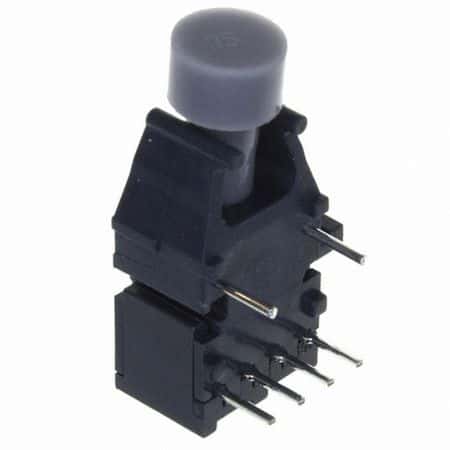

Through-hole mount fiber optic receiver operating at 650nm wavelength, supporting data rates up to 125Mbps. Features a maximum output current of 25mA and an operating supply voltage of 5V, with a supply voltage range from -500mV to 6V. This RoHS compliant component operates within a temperature range of 0°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom HFBR-2526Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | Module |
| Data Rate | 115Kbps |
| Lead Free | Lead Free |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 25mA |
| Max Supply Voltage | 6V |
| Min Supply Voltage | -500mV |
| Mount | Through Hole |
| Operating Supply Current | 15mA |
| Operating Supply Voltage | 5V |
| Output Current | 25mA |
| Package Quantity | 200 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Wavelength | 650nm |
| RoHS | Compliant |
Download the complete datasheet for Broadcom HFBR-2526Z to view detailed technical specifications.
