The HSMS-2852-BLKG is a fast switching diode with a maximum operating temperature of 150°C and a minimum operating temperature of -65°C. It has a maximum repetitive reverse voltage of 2V and a maximum reverse current of 175uA. The diode is lead free and RoHS compliant, packaged in a bulk quantity of 100 pieces. It is a surface mount device with a package type of R-PDSO-G3 and a package quantity of 100.
PackageSOT-23-3
Current Rating70mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom HSMS-2852-BLKG technical specifications.
General
| Package/Case | SOT-23-3 |
| Current Rating | 70mA |
| Forward Current | 10mA |
| Height | 1.2mm |
| Lead Free | Lead Free |
| Length | 3.13mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -65°C |
| Max Repetitive Reverse Voltage (Vrrm) | 2V |
| Max Reverse Current | 175uA |
| Mount | Surface Mount |
| Operating Supply Voltage | 250mV |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| DC Rated Voltage | 150V |
| Width | 1.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Broadcom HSMS-2852-BLKG Datasheet
Download the complete datasheet for Broadcom HSMS-2852-BLKG to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

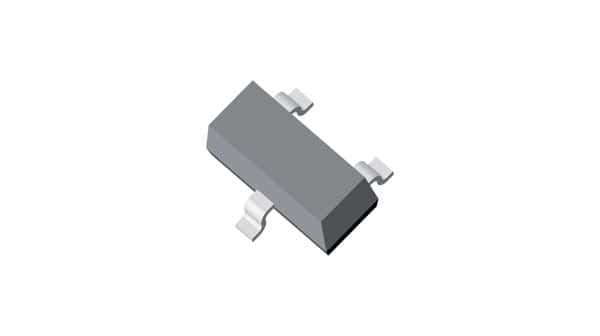

Product Images
