Broadcom
MGA-30689-TR1G
Wide Band Medium Power Amplifier, 40MHz Min, 3000MHz Max, 1 Func, GAAS, 4.50 X 4.10 MM, 1.50 MM HEIGHT, HALOGEN AND LEAD FREE, SOT-89, 3 PIN
Frequency3GHz
PackageSOT-89-3
Current104mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Broadcom MGA-30689-TR1G technical specifications.
General
Package/Case
SOT-89-3
Frequency
3GHz
Gain
14.6dB
Max Operating Temperature
150°C
Max Power Dissipation
750mW
Max Supply Voltage
5.5V
Mount
Surface Mount
Noise Figure
3.3dB
Number of Channels
1
Operating Frequency
40 MHz to 2.6 GHz
Operating Supply Current
104mA
Operating Supply Voltage
5V
P1dB
22.5dBm
Package Quantity
3000
Packaging
Tape and Reel
Power Dissipation
750mW
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
104mA
Test Frequency
1.95GHz
Compliance
RoHS
Compliant
Datasheet
Broadcom MGA-30689-TR1G Datasheet
Download the complete datasheet for Broadcom MGA-30689-TR1G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

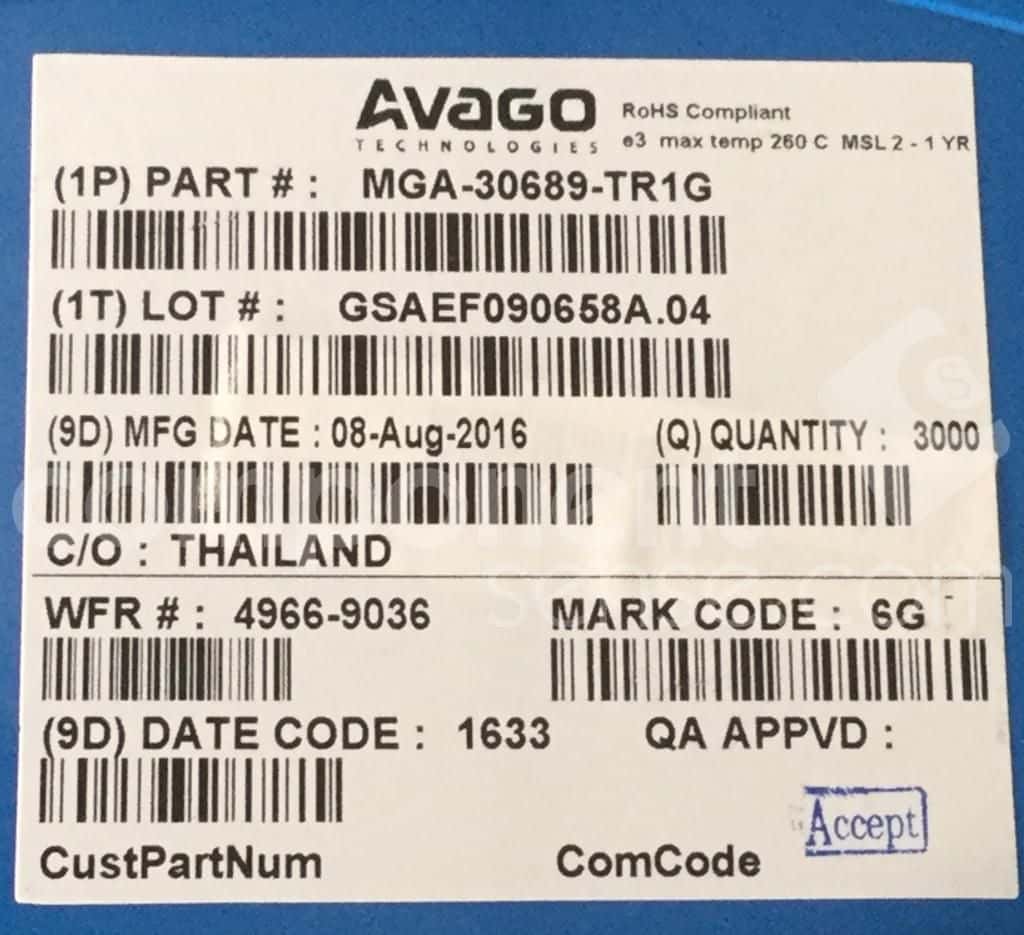

Product Images
