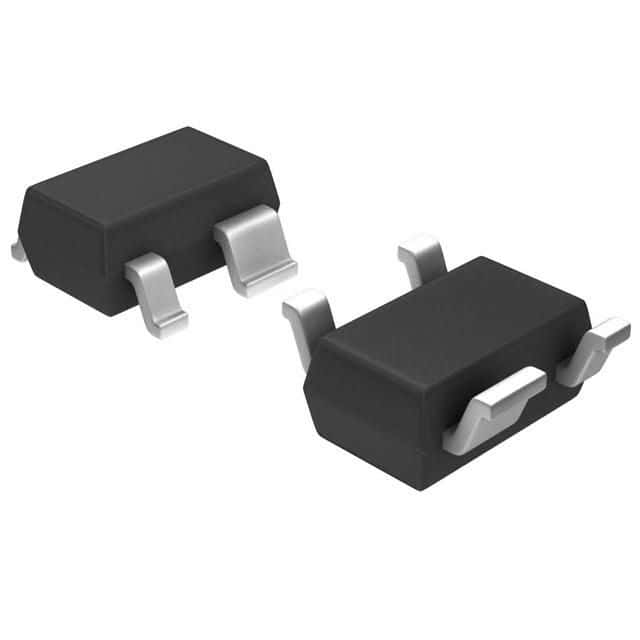

Surface mount RF amplifier operating from 100 MHz to 6 GHz. Features 15.4dB gain at 2.01GHz with a 0.8dB noise figure. Delivers 13.1dBm P1dB and operates with a 3V supply voltage, drawing 50mA. Housed in a SOT-343 package, this lead-free, RoHS compliant component offers a maximum power dissipation of 200mW and a maximum operating temperature of 150°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Broadcom MGA-71543-TR1G datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOT-343 |
| Frequency | 6GHz |
| Gain | 15.4dB |
| Lead Free | Lead Free |
| Max Frequency | 6GHz |
| Max Operating Temperature | 150°C |
| Max Power Dissipation | 200mW |
| Max Supply Current | 50mA |
| Max Supply Voltage | 4.2V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Noise Figure | 0.8dB |
| Number of Channels | 1 |
| Operating Frequency | 100 MHz to 6 GHz |
| Operating Supply Current | 50mA |
| Operating Supply Voltage | 3V |
| P1dB | 13.1dBm |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Power Dissipation | 200mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 50mA |
| Test Frequency | 2.01GHz |
| RoHS | Compliant |
