Technical Specifications
Bulgin BXS012/1 technical specifications.
General
Body Material
PC, Nylon, Glass, PET, Polyester, Polycarbonate
Contact Material
Brass, Tin, Silver
Contact Plating
Tin
Contact Type
Brass, Tin Plated (Rear Contact), Nickel Silver, Clean (Front Contact and Cap Contact Plate)
Features
WATERPROOF
Flammability Rating
UL94 V-0
Material
Nylon, Glass
Max Operating Temperature
70°C
Min Operating Temperature
-30°C
Mount
Panel
Number of Batteries
2
Number of Cells
2
Package Quantity
10
Ratings
IP67
Reach SVHC Compliant
No
Termination
Solder
Compliance
RoHS
Compliant
Datasheet
Bulgin BXS012/1 Datasheet
Download the complete datasheet for Bulgin BXS012/1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

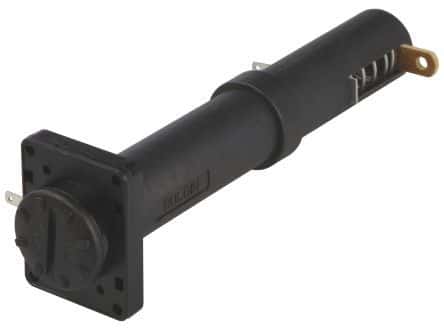

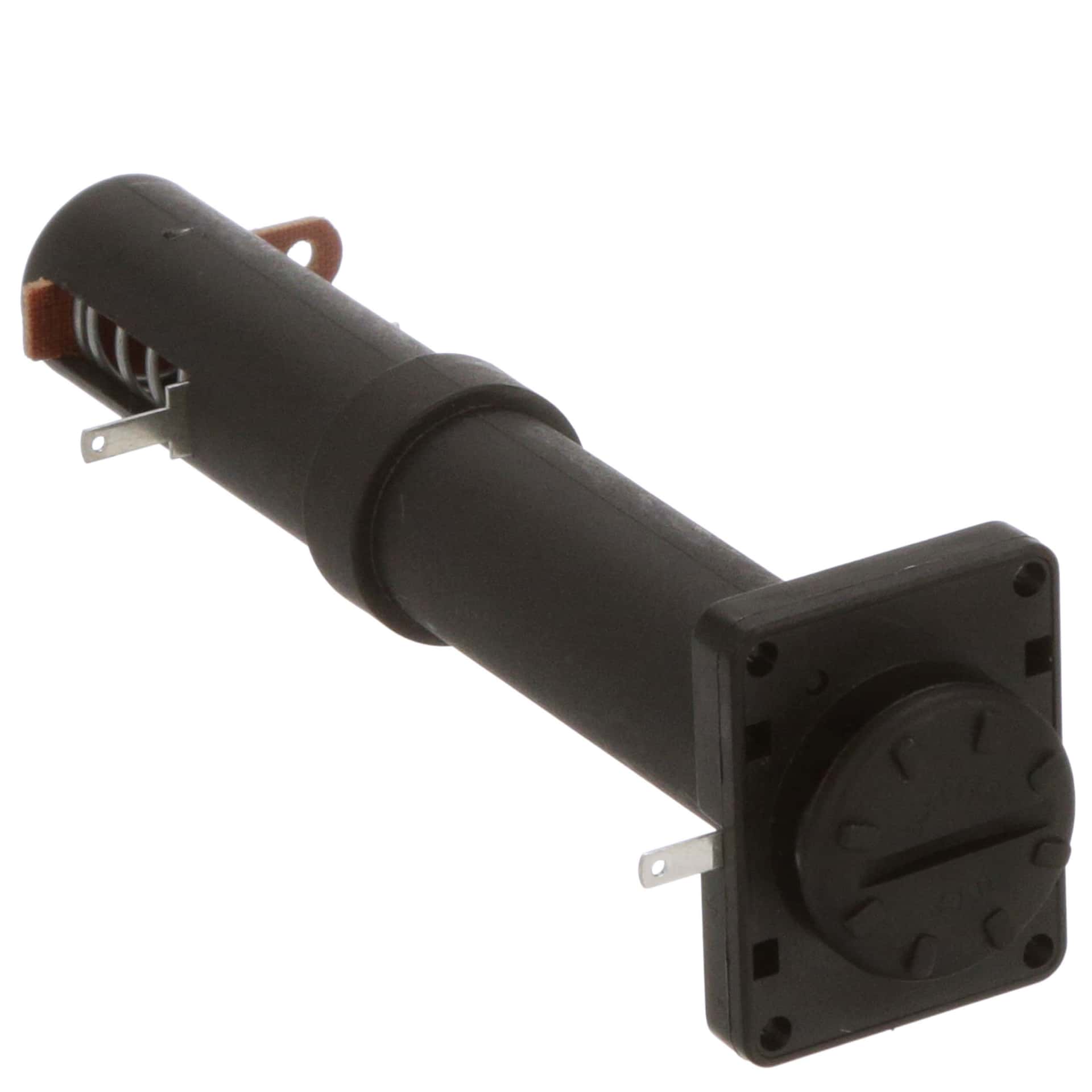

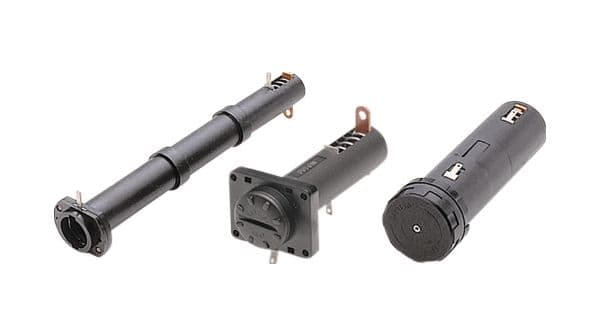

Product Images
