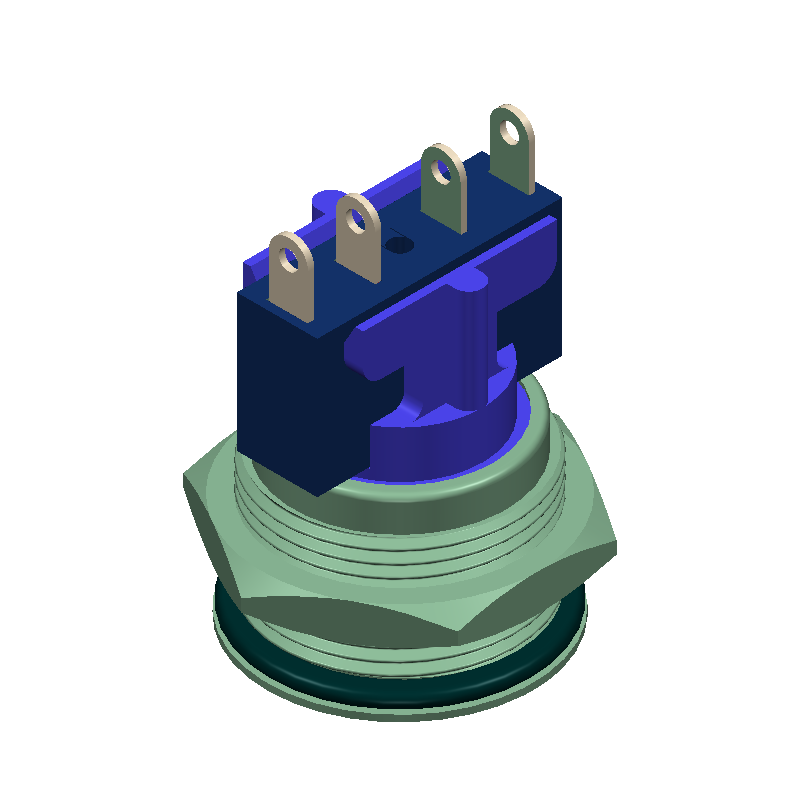

Illuminated pushbutton switch featuring a stainless steel, flush, round button actuator. This momentary contact switch offers a 5A current rating at 250VAC and 28VDC, with silver contacts and a silver plating. Designed for panel mounting with solder lug termination, it boasts an electrical life of 35,000 cycles and a mechanical life of 1,000,000 cycles. Rated IP66 for water and dust resistance, this RoHS compliant component operates within a temperature range of -20°C to 70°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin MP0031 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Stainless Steel |
| Actuator Type | Round, Button, Flush |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Contact Type | 1 maker, 1 breaker |
| Current Rating | 5A |
| Electrical Life | 35000Cycles |
| Height | 31.6mm |
| Illumination Type | Illuminated |
| Material | Stainless Steel |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mechanical Life | 1000000Cycles |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4.7N |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Tray |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SPST, DPST, SPDT, SP |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 28V |
| RoHS | Compliant |
