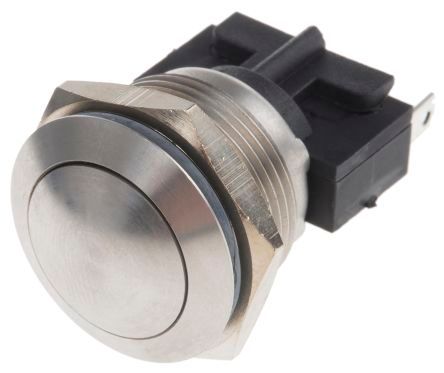

Illuminated pushbutton switch featuring a stainless steel flush dome actuator and solder terminals. This SPDT momentary switch offers a 5A contact current rating at 28VDC and 250VAC, with a silver contact material and plating. Designed for panel mounting with a threaded body, it boasts an electrical life of 35,000 cycles and a mechanical life of 1,000,000 cycles. Rated IP66 for water and dust resistance, it operates within a temperature range of -20°C to 70°C. Approvals include UL and CSA, and the product is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin MP0031/3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Material | Stainless Steel |
| Actuator Type | FLUSH DOME |
| Approvals | UL, CSA |
| Contact Current Rating | 5A |
| Contact Material | Silver |
| Contact Plating | Silver |
| Current Rating | 5A |
| Diameter | 21.5mm |
| Electrical Life | 35000Cycles |
| Height | 33.6mm |
| Illumination Type | Illuminated |
| Material | Silver |
| Max Operating Temperature | 70°C |
| Mechanical Life | 1000000Cycles |
| Min Operating Temperature | -20°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 28V |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Orientation | Straight |
| Package Quantity | 25 |
| Packaging | Tray |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | Solder |
| Throw Configuration | SPST, DPST, SPDT, SP |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| RoHS | Compliant |
