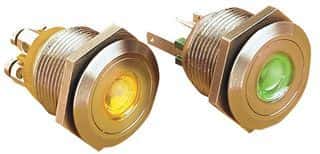

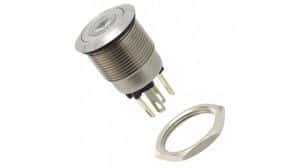

Illuminated pushbutton switch featuring a flush, round stainless steel actuator. This SPST switch offers a 50mA contact current rating at 24V DC, with gold-plated contacts for enhanced conductivity. It boasts a mechanical life of 750,000 cycles and an electrical life of 35,000 cycles. The unit is panel-mounted and front-sealed to IP66 standards, providing water and dust resistance. Illumination is provided by LEDs, available in green and red.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin MPI001/28/D1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Actuator Length | 0mm |
| Actuator Material | Stainless Steel |
| Actuator Type | Round, Button, Flush |
| Color | Green, Red |
| Contact Current Rating | 50mA |
| Contact Material | Gold |
| Contact Plating | Gold |
| Current Rating | 50mA |
| Electrical Life | 35000Cycles |
| Illumination Color | Green, Red |
| Illumination Type | LED |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (DC) | 24V |
| Mechanical Life | 750000Cycles |
| Mount | Panel, Front |
| Number of Poles | 1 |
| Operating Force | 12N |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switch Function | Off-Mom |
| Termination | Quick Connect |
| Throw Configuration | SPST |
| Voltage Rating | 24V |
| RoHS | Compliant |
