Illuminated pushbutton switch featuring a flush, round stainless steel actuator with blue illumination. Offers SPST, Off-Mom switch function with a 24V voltage rating and 50mA current rating. Constructed with gold contacts for durability, boasting a 35,000-cycle electrical life and 750,000-cycle mechanical life. Panel-mounted with 300mm wire leads, this switch is IP66 rated for water and dust resistance, operating between -30°C and 70°C.
Voltage Rating24V
Current Rating50mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Bulgin MPI002/FL/BL technical specifications.
General
| Actuator Type | Round, Button, Flush |
| Color | Blue |
| Contact Current Rating | 50mA |
| Contact Material | Gold |
| Current Rating | 50mA |
| Electrical Life | 35000Cycles |
| Illumination Color | Blue |
| Illumination Type | LED |
| Lead Length | 300mm |
| Lens Color | Blue |
| Material | Stainless Steel |
| Max Operating Temperature | 70°C |
| Mechanical Life | 750000Cycles |
| Min Operating Temperature | -30°C |
| Mount | Panel, Front |
| Operating Force | 12N |
| Packaging | Bulk |
| Ratings | IP66, Water Resistant, Dust Tight |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Switch Function | Off-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Bulgin MPI002/FL/BL Datasheet
Download the complete datasheet for Bulgin MPI002/FL/BL to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

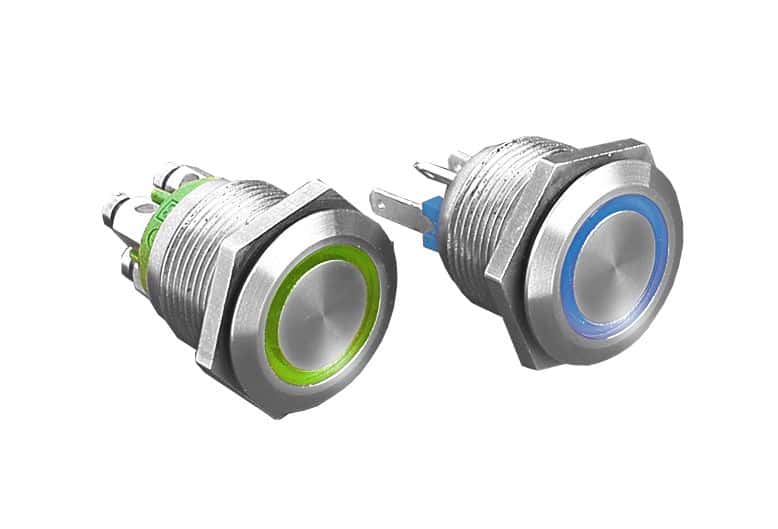

Product Images
