Bulgin
MPI002/RP/GN/6
Switch Push Button N.O. SPST Flush Round Button 0.05A 24VDC Momentary Contact Panel Mount Solder Tag Bulk
Voltage Rating24V
Current Rating50mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Bulgin MPI002/RP/GN/6 technical specifications.
General
Actuator Type
Round, Button, Flush
Color
Green
Contact Current Rating
50mA
Contact Material
Gold
Current Rating
50mA
Electrical Life
35000Cycles
Illumination Type
LED
Lead Length
300mm
Lens Color
Green
Material
Stainless Steel
Max Operating Temperature
70°C
Mechanical Life
750000Cycles
Min Operating Temperature
-30°C
Mount
Panel, Front
Operating Force
12N
Outside Diameter
22mm
Packaging
Bulk
Ratings
IP66, Water Resistant, Dust Tight
Reach SVHC Compliant
No
Switch Function
Off-Mom
Termination
Solder
Throw Configuration
SPST
Voltage Rating
24V
Compliance
RoHS
Compliant
Datasheet
Bulgin MPI002/RP/GN/6 Datasheet
Download the complete datasheet for Bulgin MPI002/RP/GN/6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

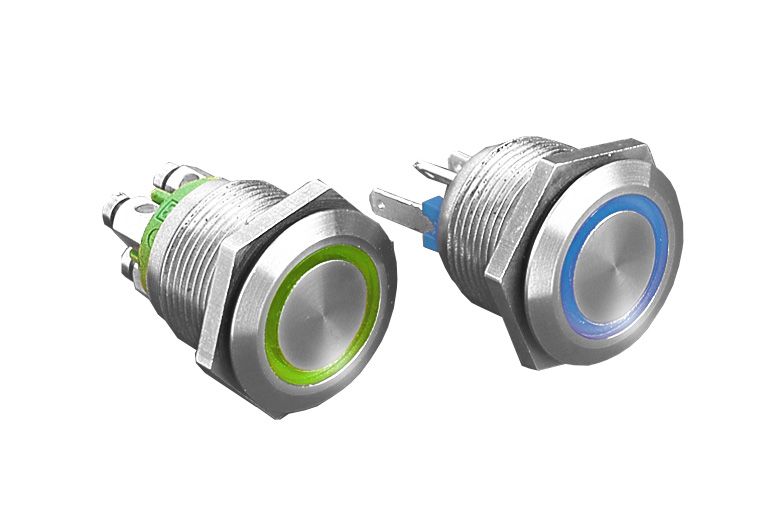

Product Images
