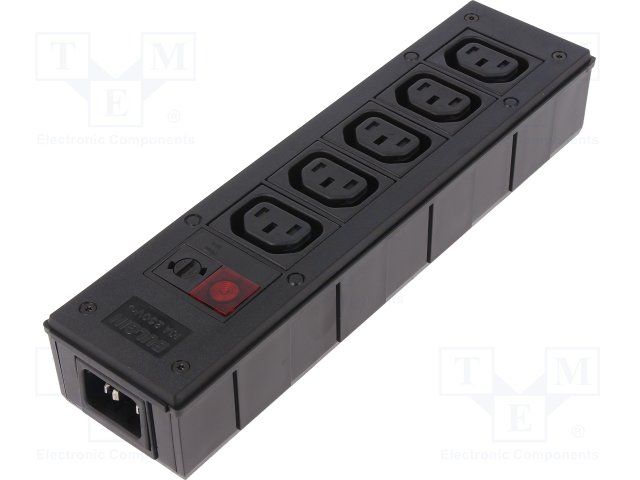

This power distribution unit features 5 AC outlets, a current rating of 10A, and a voltage rating of 250V. It is constructed with an ABS body and has a maximum operating temperature of 60°C. The unit is designed for wall mounting and includes an overload protection feature with a fuse holder. It is compliant with RoHS regulations and has a width of 58.5mm and a length of 226mm.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Bulgin PXD301/050/01/1 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Bulgin PXD301/050/01/1 technical specifications.
| AC Outlets | 5 |
| Body Material | ABS |
| Color | Black |
| Current Rating | 10A |
| Fuse | Yes |
| Height | 40mm |
| Length | 226mm |
| Max Current Rating | 10A |
| Max Operating Temperature | 60°C |
| Min Operating Temperature | -5°C |
| Mount | Wall |
| Overload Protection | Fuse Holder |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Voltage Rating | 250V |
| Voltage Rating (AC) | 250V |
| Width | 58.5mm |
| RoHS | Compliant |
Download the complete datasheet for Bulgin PXD301/050/01/1 to view detailed technical specifications.
